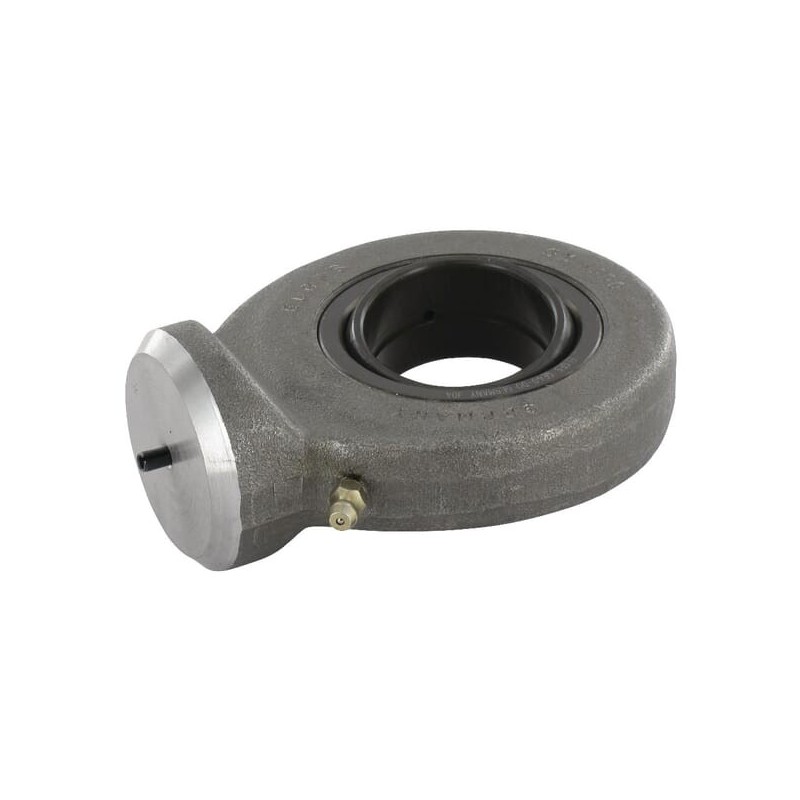

      Ball end - GK60DOINA
      Ball end - GK60DOINA
      Ball end - GK60DOINA
      Ball end - GK60DOINA

      Ball end - GK60DOINA

      Review (0)
      zł1,102.17
      Tax Included
      Return policy:14
      Ball end - GK60DOINA - Ball outside diameter: 80; Basic radial load dynamic: 245000, 245000N.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Ball end - GK60DOINA

      Reference number: GK60DOINA.

      Product parameters:

      • Ball outside diameter: 80
      • Basic radial load dynamic: 245000, 245000N
      • Basic radial load static: 389000
      • Bearing inner ring width: 44
      • Bearing outside diameter: 90, 90mm
      • Bore diameter: 60, 60mm
      • Bore length: 44, 44mm
      • Center pin diameter: 6, 6mm
      • Edge angle: 6°, 6
      • Head outside diameter: 135
      • Head width (hole length): 38
      • Hole centre to bottom distance: 100, 100mm
      • Manufacturer: Schaeffler
      • Original number equivalent: GK60-DO
      • Outside diameter of inner ring: 66.8
      • Shaft diameter: 70, 70mm
      • Shaft to center distance: 75
      • Total height: 167.5, 167,5mm
      • Total length: 167.5
      • Weight: 4.3, 4,3kg
      INA
      GK60DOINA

      Data sheet

      Manufacturer
      Schaeffler
      Weight
      4,3kg
      4.3
      Total height
      167,5mm
      167.5
      Extra info
      Original number equivalent
      GK60-DO
      Hole length
      44
      44mm
      Total length
      167.5
      Bore diameter
      60
      60mm
      Bearing outside diameter
      90
      90mm
      Basic radial load static
      389000
      Basic radial load dynamic
      245000
      245000N
      Shaft diameter
      70
      70mm
      Head width (hole length)
      38
      Head outside diameter
      135
      Outside diameter of inner ring
      66.8
      Bearing inner ring width
      44
      Hole centre to bottom distance
      100
      100mm
      Ball outside diameter
      80
      Edge angle
      6
      6°
      Shaft to center distance
      75
      Center pin diameter
      6
      6mm
