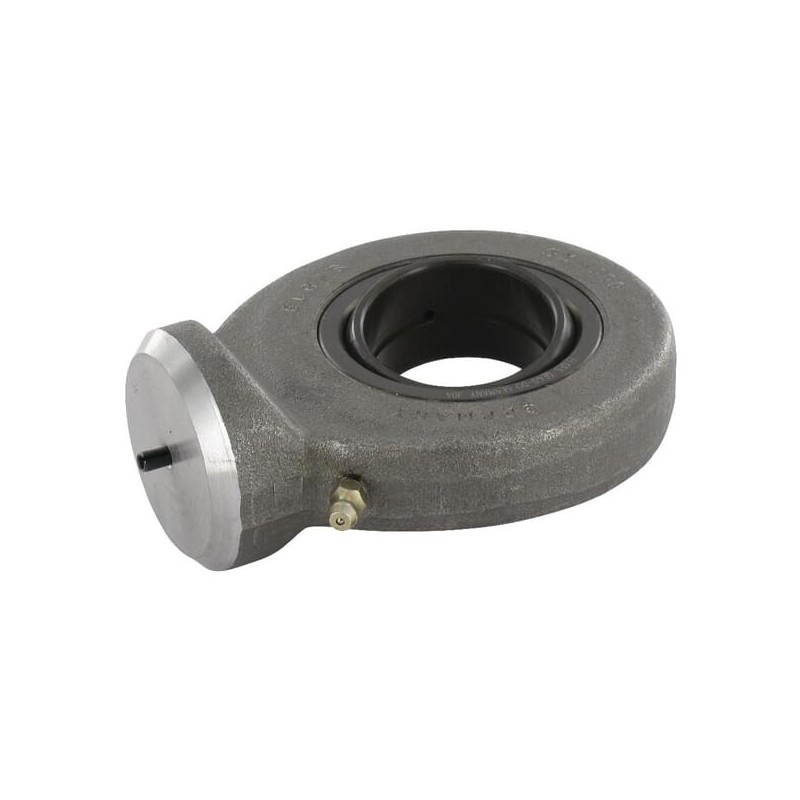

      Ball end - GK45DOINA
      Ball end - GK45DOINA
      Ball end - GK45DOINA
      Ball end - GK45DOINA

      Ball end - GK45DOINA

      Review (0)
      zł763.29
      Tax Included
      Return policy:14
      Ball end - GK45DOINA - Ball outside diameter: 60; Basic radial load dynamic: 128000, 128000N.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Ball end - GK45DOINA

      Reference number: GK45DOINA.

      Product parameters:

      • Ball outside diameter: 60
      • Basic radial load dynamic: 128000, 128000N
      • Basic radial load static: 208000, 208000N
      • Bearing inner ring width: 32
      • Bearing outside diameter: 68, 68mm
      • Bore diameter: 45, 45mm
      • Bore length: 32, 32mm
      • Center pin diameter: 6, 6mm
      • Edge angle: 7, 7°
      • Head outside diameter: 102, 102mm
      • Head width (hole length): 27, 27mm
      • Hole centre to bottom distance: 77, 77mm
      • Manufacturer: Schaeffler
      • Original number equivalent: GK45-DO
      • Outside diameter of inner ring: 50.7, 50,7mm
      • Shaft diameter: 58
      • Shaft to center distance: 52, 52mm
      • Total height: 128, 128mm
      • Total length: 128, 128mm
      • Weight: 1.89
      INA
      GK45DOINA

      Data sheet

      Manufacturer
      Schaeffler
      Weight
      1.89
      Total height
      128
      128mm
      Additional info
      Original number equivalent
      GK45-DO
      Hole length
      32
      32mm
      Total length
      128
      128mm
      Bore diameter
      45
      45mm
      Bearing outside diameter
      68
      68mm
      Basic radial load static
      208000
      208000N
      Basic radial load dynamic
      128000
      128000N
      Shaft diameter
      58
      Head width (hole length)
      27
      27mm
      Head outside diameter
      102
      102mm
      Outside diameter of inner ring
      50,7mm
      50.7
      Bearing inner ring width
      32
      Hole centre to bottom distance
      77
      77mm
      Ball outside diameter
      60
      Edge angle
      7
      7°
      Shaft to center distance
      52
      52mm
      Center pin diameter
      6
      6mm
