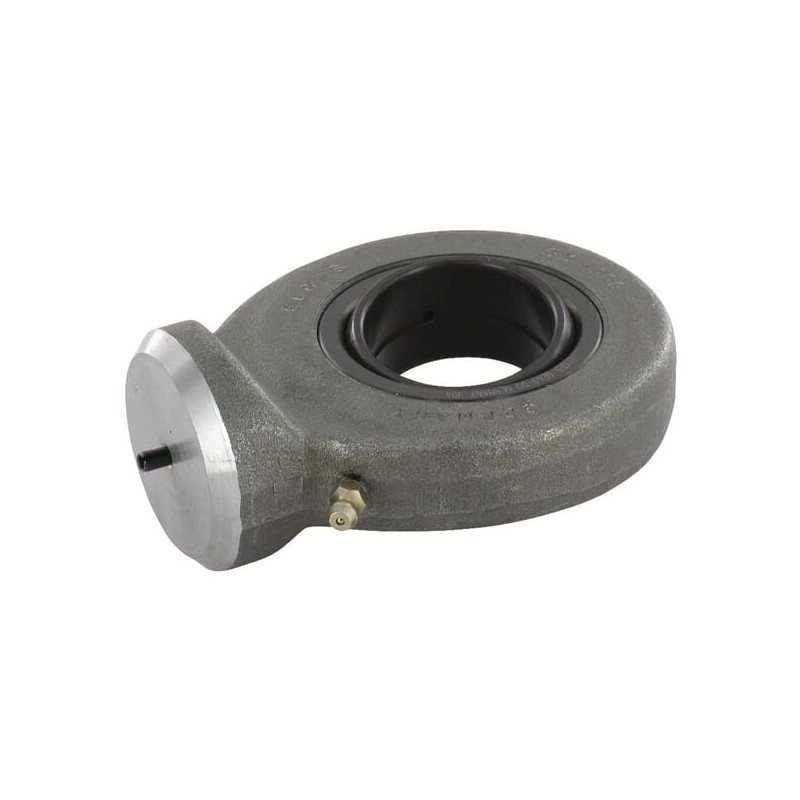

      Ball end - GK50DOINA
      Ball end - GK50DOINA
      Ball end - GK50DOINA
      Ball end - GK50DOINA

      Ball end - GK50DOINA

      Review (0)
      zł684.51
      Tax Included
      Return policy:14
      Ball end - GK50DOINA - Ball outside diameter: 66; Basic radial load dynamic: 157000, 157000N.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Ball end - GK50DOINA

      Reference number: GK50DOINA.

      Product parameters:

      • Ball outside diameter: 66
      • Basic radial load dynamic: 157000, 157000N
      • Basic radial load static: 252000
      • Bearing inner ring width: 35
      • Bearing outside diameter: 75, 75mm
      • Bore diameter: 50, 50mm
      • Bore length: 35, 35mm
      • Center pin diameter: 6, 6mm
      • Edge angle: 6°, 6
      • Head outside diameter: 112
      • Head width (hole length): 30, 30mm
      • Hole centre to bottom distance: 88
      • Manufacturer: Schaeffler
      • Original number equivalent: GK50-DO
      • Outside diameter of inner ring: 55.9
      • Shaft diameter: 62
      • Shaft to center distance: 60
      • Total height: 144, 144mm
      • Total length: 144, 144mm
      • Weight: 2.55, 2,55kg
      INA
      GK50DOINA
      20 Items

      Data sheet

      Manufacturer
      Schaeffler
      Weight
      2,55kg
      2.55
      Total height
      144
      144mm
      Additional info
      Original number equivalent
      GK50-DO
      Hole length
      35
      35mm
      Total length
      144
      144mm
      Bore diameter
      50
      50mm
      Bearing outside diameter
      75
      75mm
      Basic radial load static
      252000
      Basic radial load dynamic
      157000
      157000N
      Shaft diameter
      62
      Head width (hole length)
      30
      30mm
      Head outside diameter
      112
      Outside diameter of inner ring
      55.9
      Bearing inner ring width
      35
      Hole centre to bottom distance
      88
      Ball outside diameter
      66
      Edge angle
      6
      6°
      Shaft to center distance
      60
      Center pin diameter
      6
      6mm
