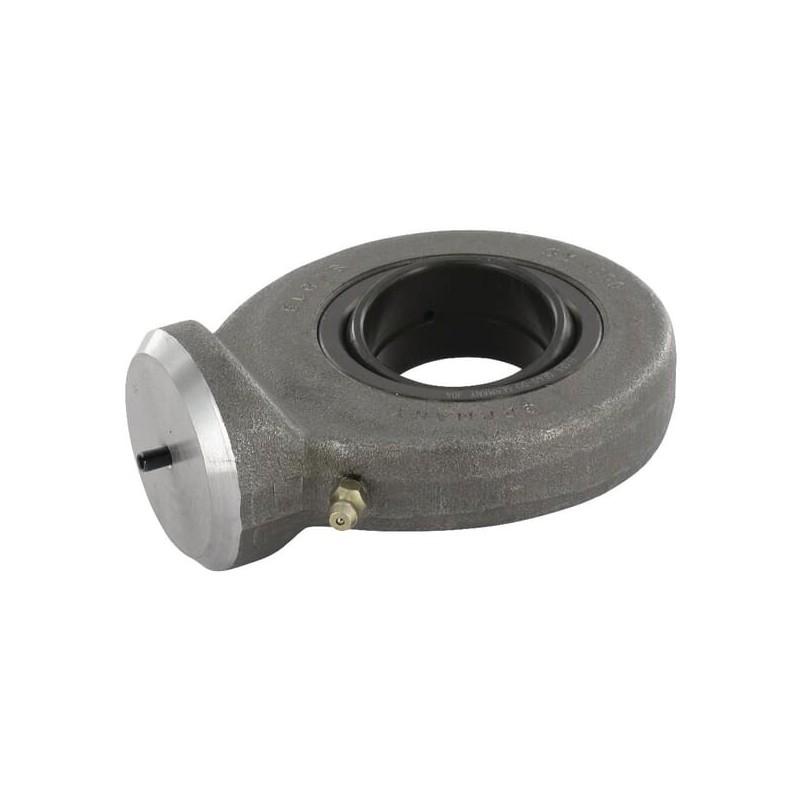

      Ball end - GK35DOINA
      Ball end - GK35DOINA
      Ball end - GK35DOINA
      Ball end - GK35DOINA

      Ball end - GK35DOINA

      Review (0)
      zł336.39
      Tax Included
      Return policy:14
      Ball end - GK35DOINA - Ball outside diameter: 47; Basic radial load dynamic: 79900, 79900N.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Ball end - GK35DOINA

      Reference number: GK35DOINA.

      Product parameters:

      • Ball outside diameter: 47
      • Basic radial load dynamic: 79900, 79900N
      • Basic radial load static: 128000, 128000N
      • Bearing inner ring width: 25
      • Bearing outside diameter: 55, 55mm
      • Bore diameter: 35mm, 35
      • Bore length: 25, 25mm
      • Center pin diameter: 4
      • Edge angle: 6°, 6
      • Head outside diameter: 82, 82mm
      • Head width (hole length): 21, 21mm
      • Hole centre to bottom distance: 61, 61mm
      • Manufacturer: Schaeffler
      • Original number equivalent: GK35-DO
      • Outside diameter of inner ring: 39.7, 39,7mm
      • Shaft diameter: 47
      • Shaft to center distance: 42
      • Total height: 102, 102mm
      • Total length: 102, 102mm
      • Weight: 0.978
      INA
      GK35DOINA

      Data sheet

      Manufacturer
      Schaeffler
      Weight
      0.978
      Total height
      102
      102mm
      Extra info
      Original number equivalent
      GK35-DO
      Hole length
      25
      25mm
      Total length
      102
      102mm
      Bore diameter
      35
      35mm
      Bearing outside diameter
      55
      55mm
      Basic radial load static
      128000
      128000N
      Basic radial load dynamic
      79900
      79900N
      Shaft diameter
      47
      Head width (hole length)
      21
      21mm
      Head outside diameter
      82
      82mm
      Outside diameter of inner ring
      39,7mm
      39.7
      Bearing inner ring width
      25
      Hole centre to bottom distance
      61
      61mm
      Ball outside diameter
      47
      Edge angle
      6
      6°
      Shaft to center distance
      42
      Center pin diameter
      4

      Specific References
