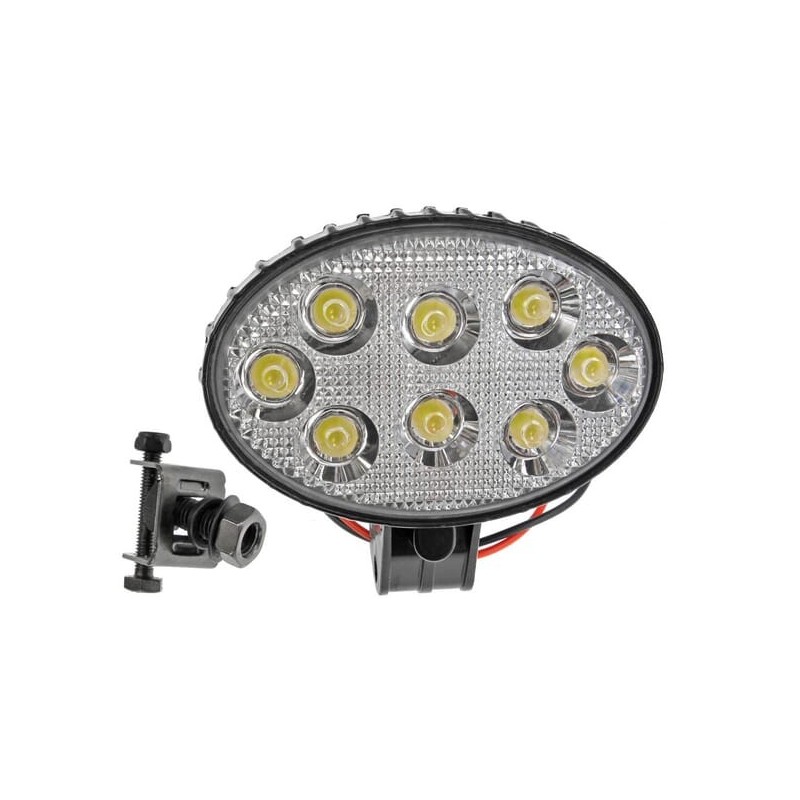

LED’s present many advantages over incandescent light sources including up to 80% lower energy consumption, 20,000 – 50,000 hours lifetime, improved physical robustness, smaller size and faster switching. This premium oval, base mounted LED lamp is powered by 8 x 3 watt LED’s, comes with a stainless mounting bracket and hollow mounting stud. IP67 approved – dust tight and protected from water immersion up to 1m for 30mins. Measurements: •Width: 140mm •Height: 100mm •Depth: 80mm Specifications: Flood Pattern Lens •1900 Lumens (Raw) •1500 Lumens (effective) •8 x 3W LED Bulbs •Voltage 12/24V •Flood pattern lens Features: •Stainless mounting bracket •Body Material: Die cast aluminium •Lens material: Acrylic •Working temp: --30°C ~ +50°C Applications: John Deere Tractor – 7220, 7320, 7420, 7520, 7630, 7720, 7730, 7820, 7830, 7920, 7930, 8120, 8130, 8220, 8230, 8320, 8330, 8420, 8430, (2006-2009), 8520, 8530, 9120, 9220, 9230, 9320, 9330, 9420, 9430, 9520, 9620, 9630. Also available for use with all makes of tractor.

Shape

Oval

Content in sale unit

1

Application

Universal | Off road | Tractor | Construction vehicle

Function

Work light

Technology

LED

Light colour

White

Luminous flux

1500
