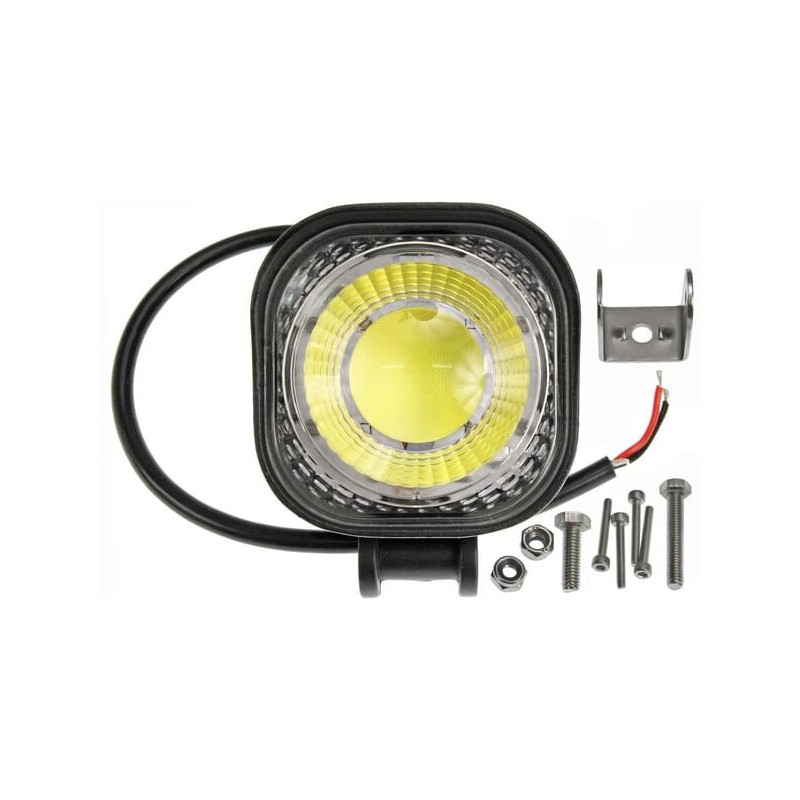

LED’s present many advantages over incandescent light sources including up to 80% lower energy consumption, 20,000 – 50,000 hours lifetime, improved physical robustness, smaller size and faster switching. This square, LED lamp is powered using 1 x 25W LED, comes with a stainless mounting bracket and hollow mounting stud. It’s small in size but extremely effective. IP68 approved – dust tight and protected against the effects of water immersion under pressure for prolonged periods of time. Measurements: •Width: 90mm •Height: 90mm •Depth: 70mm Specifications: •2000 Lumens (Raw) •1800 Lumens (effective) •25W LED Bulb •Voltage 12/24Vdc •Flood pattern lens Features: •Stainless mounting bracket •Body Material: Die cast aluminium •Lens material: Acrylic •Working temp: -30°C ~ +50°C

Shape

Square

Content in sale unit

1

Designed for

Universal | Off road | Tractor | Construction vehicle

Function

Work light

Technology

LED

Light colour

White

Luminous flux

2000

Nominal voltage range

10-30
