Data sheet

Additional info

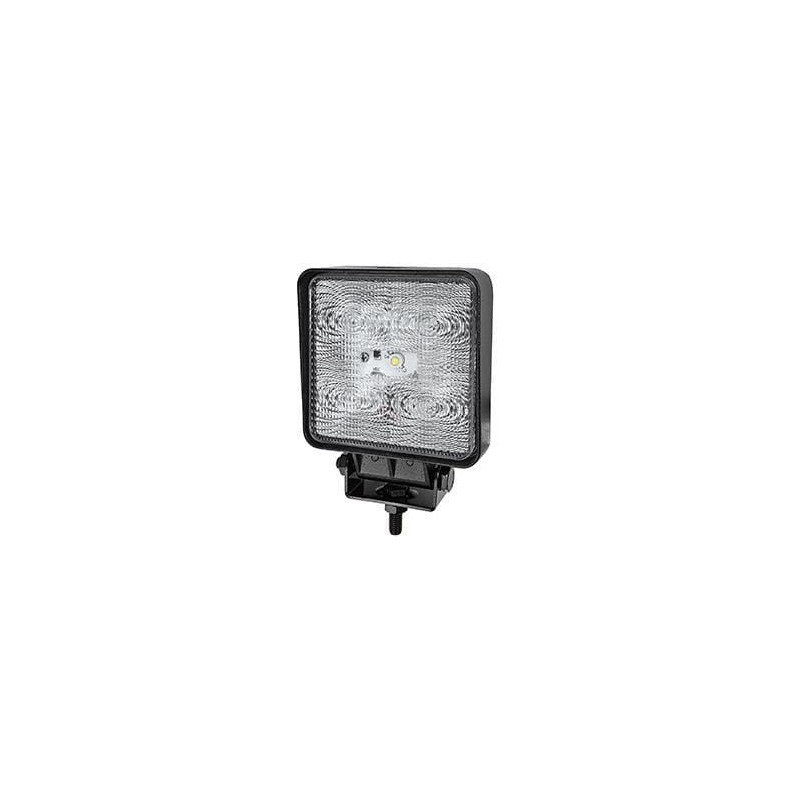

Just 35mm deep! This square, ‘slimline’ LED worklight is powered by 5 x 3 watt LED’s and ideal for providing safe and productive field and close quarters night illumination. Die-cast aluminium body with a tough, impact resistant polycarbonate lens. Very low current draw means low power consumption for a longer working life and better use of available, stored vehicle battery energy. E-marked. ECE R10 approved with in-built electrical noise suppressor. IP67 approved – dust tight and protected from water immersion up to 1m for 30mins. ; Measurements: Width: 106mm • Height: 137mm • Depth: 35mm ; Flood illumination pattern (short working range) ; 950 Lumens (raw) • 883 Lumens (effective) ; 5 x 3W LED Bulbs ; Voltage 9/32V ; Stainless steel mounting bracket ; Body Material: Die cast aluminium, powder-coated ; Lens material: Impact-resistant polycarbonate ; Working temp: -40°C ~ +50°C ; Pre-wired with 2 core cable • Available for use with all makes of tractor.

Shape

Square

Content in sale unit

1

Designed for

Universal | Truck | Off road | Tractor | Construction vehicle

Function

Work light

Technology

LED

Light colour

White

Luminous flux

950

Nominal voltage range

9-32

Light type

Flood
