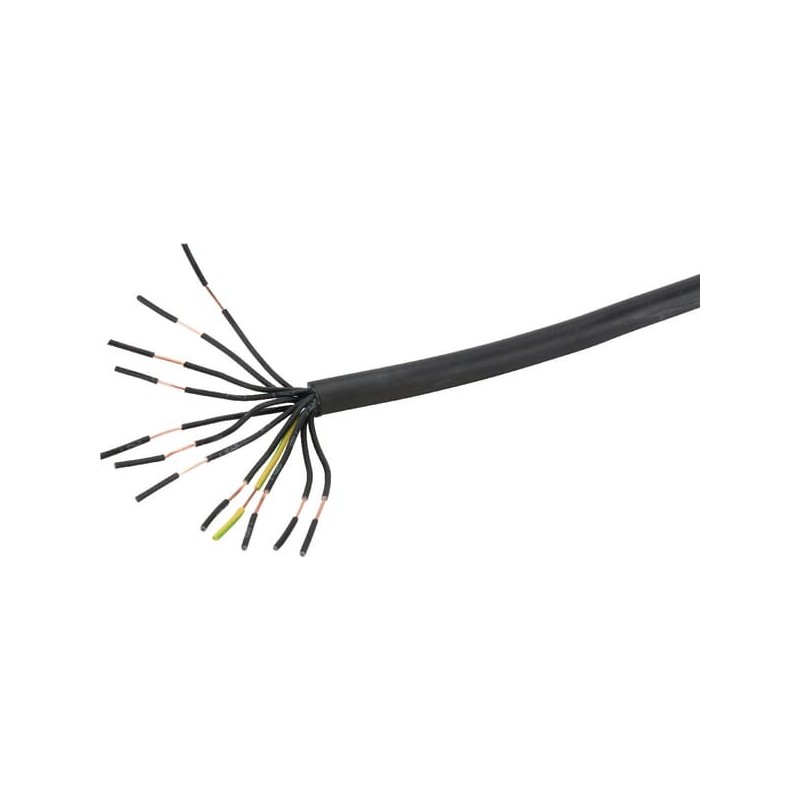

      Cable FLEXYJZ-3x0.5 BK - FLEXYJZ305BK
      Cable FLEXYJZ-3x0.5 BK - FLEXYJZ305BK

      Cable FLEXYJZ-3x0.5 BK - FLEXYJZ305BK

      Review (0)
      zł3.98
      Tax Included
      Return policy:14
      Cable FLEXYJZ-3x0.5 BK - FLEXYJZ305BK - Assembling ambient temperature range: -40-80, -40-80°C; Colour outer sheath: Black, Czarny.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Cable FLEXYJZ-3x0.5 BK - FLEXYJZ305BK

      Reference number: FLEXYJZ305BK.

      Product parameters:

      • Assembling ambient temperature range: -40-80, -40-80°C
      • Colour outer sheath: Black, Czarny
      • Conductor category: Class 5 flexible, Klasa 5 wielodrutowa giętka
      • Conductor category class code: 5
      • Core cross section: 0.5, 0,5mm²
      • Core identification: Numbers, Numery
      • Core identification type: Numbers, Numery
      • Fire reaction class code according to EN 13501-6: Eca
      • Flame retardant according to IEC/EN 60332-1-2: Yes, Tak
      • Halogen free according to EN 50267-2-2: No, Nie
      • Low smoke according to EN 61034-2: No, Nie
      • Low temperature resistant according to EN 60811-504+505+506: No, Nie
      • Manufacturer Product ID: 10341
      • Material core insulation: PVC, PCW
      • Material insulation: PVC, PCW
      • Material outer sheath: PVC, PCW
      • Min. permitted bending radius, moving application/free movement: 43
      • Min. permitted bending radius, stationary application/permanent installation: 23, 23mm
      • Nominal cross section conductor: 0.5, 0,5mm²
      • Nominal voltage U: 500, 500V
      • Nominal voltage U0: 300, 300V
      • Number of cores: 3
      • Oil resistant according to EN IEC 60811-404: No, Nie
      • Outer diameter approx.: 5.7, 5,7mm
      • Outer sheath colour: Black, Czarny
      • Outer sheath material: PVC, PCW
      • Outside diameter: 5.7, 5,7mm
      • Packing type: n/a, Nie dotyczy
      • Permitted cable outer temperature after assembling without vibration: -40-80, -40.0-80.0
      • Permitted cable outer temperature during assembling/handling: -15-80, -15.0-80.0°C
      • Protective conductor: Yes, Tak
      • Reaction-to-fire according to EN 13501-6: Acidity: None
      • Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: None
      • Reaction-to-fire according to EN 13501-6: Smoke production: None
      • Screen over stranding: None, Brak
      • Screen over stranding element: None, Brak
      • Stranding element: No, Nie
      • Supspension element: Yes, Tak
      • Suspension element: n/a, Nie dotyczy
      • Torsion resistant: No, Nie
      • Working ambient temperature range: -15-80
      HELU
      FLEXYJZ305BK

      Data sheet

      Additional info
      Outside diameter
      5,7mm
      5.7
      Packing type
      Nie dotyczy
      n/a
      Manufacturer Product ID
      10341
      Core cross section
      0,5mm²
      0.5
      Outer sheath colour
      Black
      Czarny
      Nominal cross section conductor
      0,5mm²
      0.5
      Conductor category
      Class 5 = flexible
      Klasa 5 = wielodrutowa giętka
      Material outer sheath
      PCW
      PVC
      Colour outer sheath
      Black
      Czarny
      Permitted cable outer temperature during assembling/handling
      -15-80
      -15.0-80.0°C
      Nominal voltage U0
      300
      300
      300V
      300V
      Nominal voltage U
      500
      500
      500V
      500V
      Permitted cable outer temperature after assembling without vibration
      -40-80
      -40.0-80.0
      Number of cores
      3
      3
      3
      3
      Material core insulation
      PCW
      PVC
      Core identification
      Numbers
      Numery
      Protective conductor
      Tak
      Yes
      Outer diameter approx.
      5,7mm
      5.7
      Core insultation material
      PCW
      PVC
      Supspension element
      Tak
      Yes
      Outer sheath material
      PCW
      PVC
      Conductor category class code
      5
      5
      Flame retardant according to IEC/EN 60332-1-2
      Tak
      Yes
      Low smoke according to EN 61034-2
      Nie
      No
      Assembling ambient temperature range
      -40-80
      -40-80°C
      Working ambient temperature range
      -15-80
      -15-80
      Screen over stranding element
      Brak
      None
      Screen over stranding
      Brak
      None
      Stranding element
      Nie
      No
      Core identification type
      Numbers
      Numery
      Oil resistant according to EN IEC 60811-404
      Nie
      No
      Fire reaction class code according to EN 13501-6
      Eca
      Eca
      Halogen free according to EN 50267-2-2
      Nie
      No
      Low temperature resistant according to EN 60811-504+505+506
      Nie
      No
      Min. permitted bending radius, moving application/free movement
      43
      Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
      None
      None
      Reaction-to-fire according to EN 13501-6: Acidity
      None
      None
      Reaction-to-fire according to EN 13501-6: Smoke production
      None
      None
      Suspension element
      Nie dotyczy
      n/a
      Torsion resistant
      Nie
      No
      Min. permitted bending radius, stationary application/permanent installation
      23
      23mm
