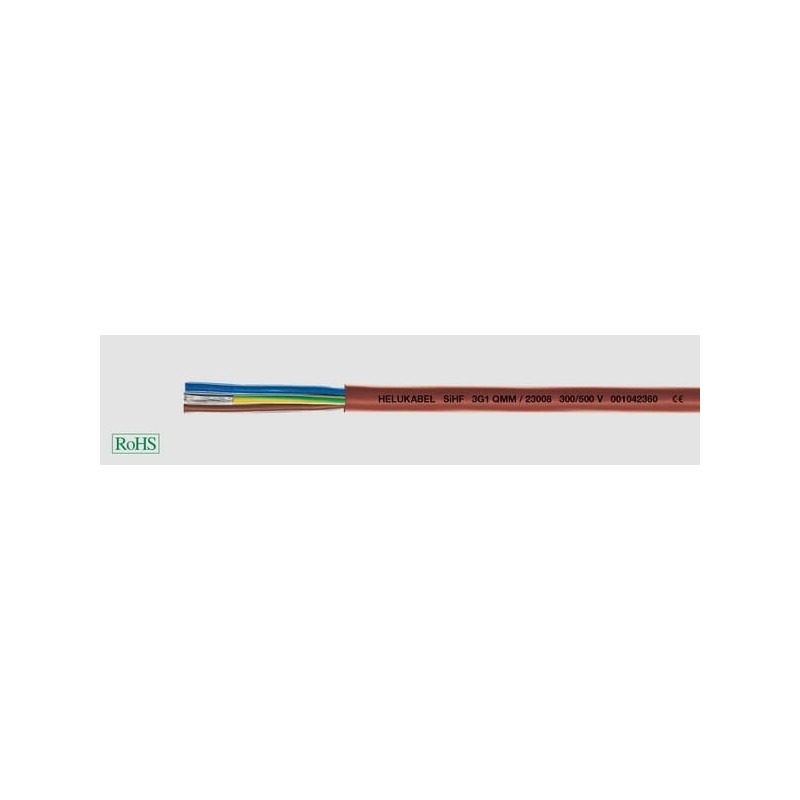

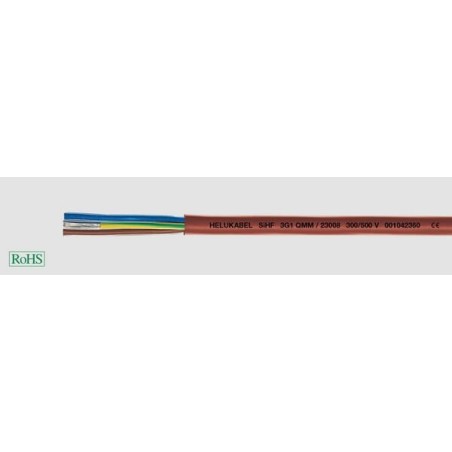

Cable SiHF - SIHF315

Reference number: SIHF315.

Product parameters:

• Colour outer sheath: Red, Czerwony
• Conductor category: Class 5 flexible, Klasa 5 wielodrutowa giętka
• Conductor category class code: 5
• Conductor material: Copper, Miedź
• Conductor surface: Tinned, Przyciemniana
• Core cross section: 1.5, 1,5mm²
• Core identification type: Colours, Kolory
• Core insulation material grade: Rubber - silicone rubber (SIR), Guma - silikon (SIR)
• Core insultation material: Silicone, Silikon
• Fire reaction class code according to EN 13501-6: n/a
• Long description: Wielożyłowy przewód z izolacją ze specjalnego silikonu z wysoką termoodpornością zgodny z DIN VDE 0250 cz. 1 i DIN VDE 0285-525-2-83/ DIN EN 50525-2-83
• Manufacturer Product ID: 23014
• Min. permitted bending radius, stationary application/permanent installation: 32, 32mm
• Nominal cross section conductor: 1.5, 1,5mm²
• Nominal current: 16, 16A
• Nominal voltage U: 500, 500V
• Nominal voltage U0: 300, 300V
• Number of cores: 3
• Outer diameter approx.: 8, 8mm
• Outer sheath colour: Red, Czerwony
• Outer sheath material: Silicone, Silikon
• Packing type: n/a, Nie dotyczy
• Permitted cable outer temperature after assembling without vibration: -60-180, -60.0-180.0
• Protective conductor: No, Nie
• Reaction-to-fire according to EN 13501-6: Acidity: None
• Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: None
• Reaction-to-fire according to EN 13501-6: Smoke production: None
• Resistance: 13.3, 13,3Ω
• Specification material outer sheath: Rubber - silicone rubber (SIR), Guma - silikon (SIR)
• Supspension element: No, Nie
