Data sheet

Insulation class

66
66

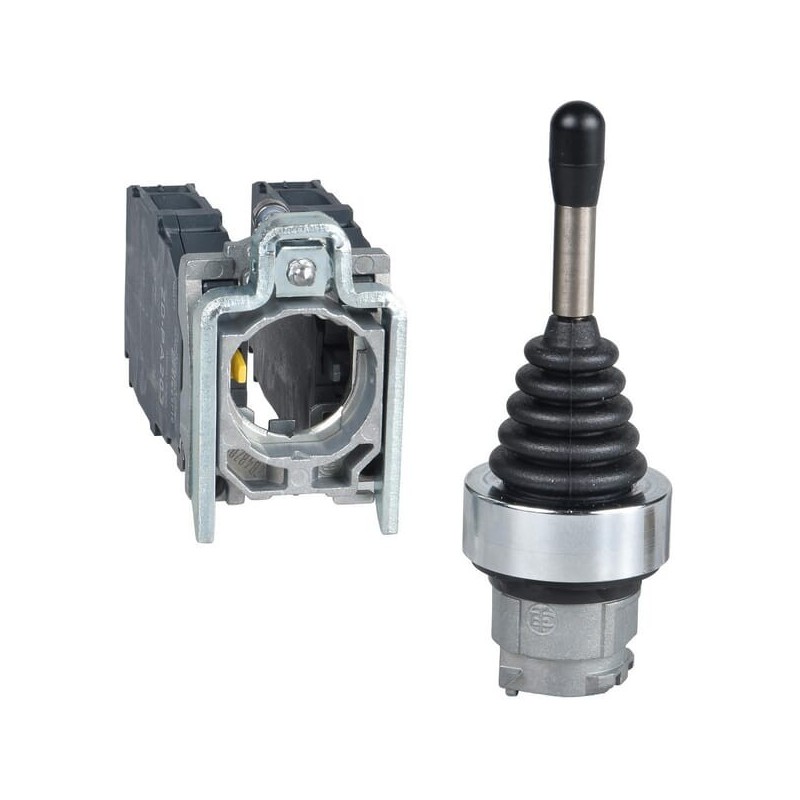

Manufacturer Product ID

XD4PA14

With front ring

Tak
Yes

Material front ring

Metal
Metal

Colour front ring

Silver
Srebrny

Number of switch positions

4
4

Analogue output signal configurable

Nie
No

Centre mounting, hole diameter

22
22mm

Coder

Nie
No

Joystick length

54
54mm

Locking in 0-position

Nie
No

Number of actuation directions

4
4

With retraction in 0-position

Nie
No

Number of make-and-break contacts per direction

Number of normally open contacts per actuation direction

2
2

Number of normally closed contacts per actuation direction

Rated operation current Ie at AC-21, 400 V

4
4A
