Data sheet

Insulation class

66
66

Manufacturer Product ID

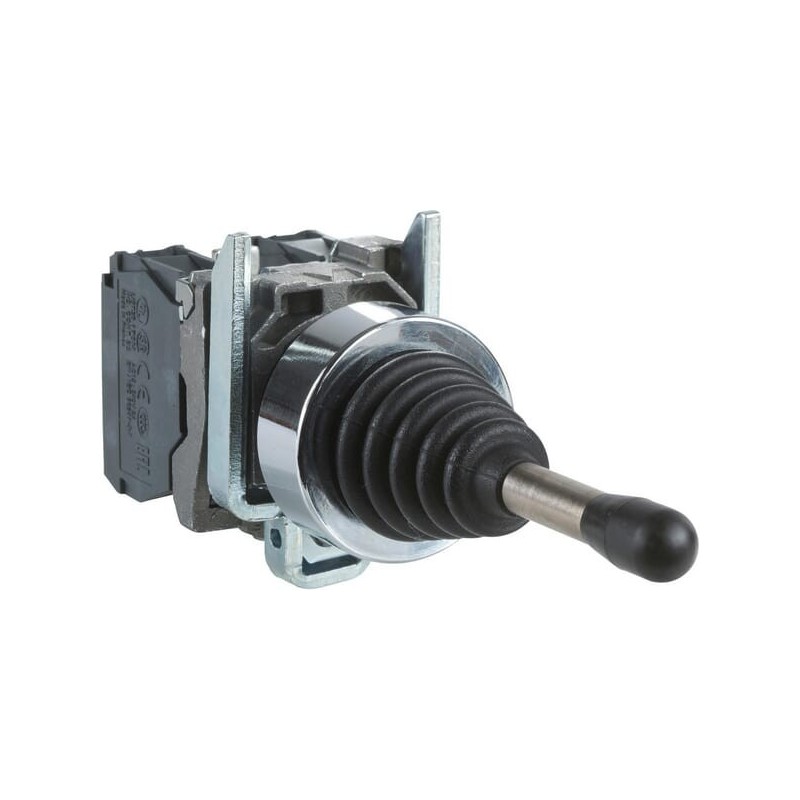

XD4PA22

With front ring

Tak
Yes

Material front ring

Metal
Metal

Colour front ring

Silver
Srebrny

Number of switch positions

2
2

Analogue output signal configurable

Nie
No

Centre mounting, hole diameter

22
22mm

Coder

Nie
No

Joystick length

54
54mm

Locking in 0-position

Nie
No

Number of actuation directions

2
2

With retraction in 0-position

Tak
Yes

Number of make-and-break contacts per direction

Number of normally open contacts per actuation direction

2
2

Number of normally closed contacts per actuation direction

Rated operation current Ie at AC-21, 400 V

4
4A
