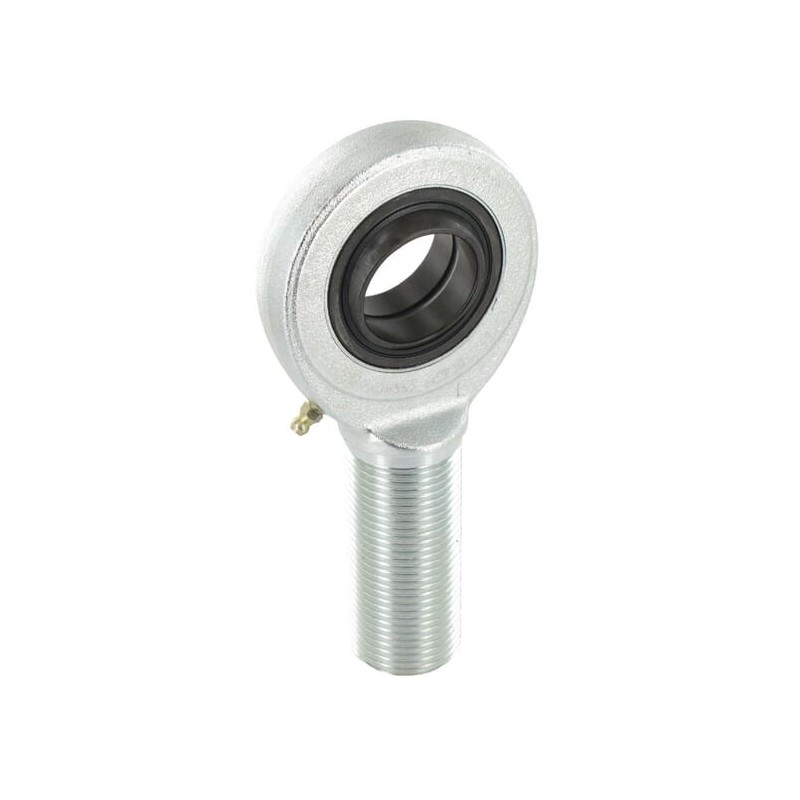

      Rod head - GAL30DO2RSINA
      Rod head - GAL30DO2RSINA
      Rod head - GAL30DO2RSINA
      Rod head - GAL30DO2RSINA
      Rod head - GAL30DO2RSINA

      Rod head - GAL30DO2RSINA

      Review (0)
      zł579.55
      Tax Included
      Return policy:14
      Rod head - GAL30DO2RSINA - Ball outside diameter: 40.7; Basic load ratings dyn. C: 62300, 62300N.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Rod head - GAL30DO2RSINA

      Reference number: GAL30DO2RSINA.

      Product parameters:

      • Ball outside diameter: 40.7
      • Basic load ratings dyn. C: 62300, 62300N
      • Basic load ratings Stat. Co: 119000, 119000N
      • Basic radial load dynamic: 81000
      • Basic radial load static: 119000
      • Bearing outside diameter: 47
      • Bore diameter: 30
      • Bore length: 22
      • Distance basis center shaft: 110, 110mm
      • Edge angle: 6
      • Head outside diameter: 73
      • Head width (hole length): 19
      • Height house: 19
      • Height inner ring: 22, 22mm
      • Inside diameter: 30, 30mm
      • Length: 146.5, 146.5mm
      • Length L7: 37, 37mm
      • Male thread: M30 x 2.0 LH
      • Manufacturer: Schaeffler
      • Outside diameter ball: 40.7, 40.7mm
      • Outside diameter bearing: 47, 47mm
      • Outside diameter innerring: 34.2, 34.2mm
      • Sealing: Yes
      • Shaft to center distance: 65
      • Suitable for original number: GAL30-DO-2RS
      • Surface treatment: Ocynkowany
      • Thread: Strona lewaBSP
      • Thread diameter: M30
      • Thread direction: Left, Lewy
      • Thread length: 67, 65mm
      • Thread pitch: 2.00
      • Thread type: Metric
      • Type: Male thread, Gwint zewnętrzny
      • Width: 73, 73mm
      INA
      GAL30DO2RSINA
      20 Items

      Data sheet

      Manufacturer
      Schaeffler
      Width
      73
      73mm
      Length
      146.5
      146.5mm
      Additional info
      Bore length
      22
      Inside diameter
      30
      30mm
      Type
      Male thread
      Male thread
      Bore diameter
      30
      Thread diameter
      M30
      Thread pitch
      2.00
      Thread type
      Metric
      Consists of
      Thread length
      65
      65mm
      67
      Bearing outside diameter
      47
      Suitable for original number
      GAL30-DO-2RS
      Thread

      Strona lewaBSP
      Basic radial load static
      119000
      Basic radial load dynamic
      81000
      Male thread
      M30 x 2.0 LH
      Thread direction
      Left
      Lewy
      Surface treatment

      Ocynkowany
      Sealing
      Yes
      Head width (hole length)
      19
      Head outside diameter
      73
      Basic load ratings dyn. C
      62300
      62300N
      Basic load ratings Stat. Co
      119000
      119000N
      Length L7
      37
      37mm
      Distance basis center shaft
      110
      110mm
      Height house
      19
      Height inner ring
      22
      22mm
      Outside diameter ball
      40.7
      40.7mm
      Outside diameter bearing
      47
      47mm
      Outside diameter innerring
      34.2
      34.2mm
      Ball outside diameter
      40.7
      Edge angle
      6
      Shaft to center distance
      65

      Specific References
