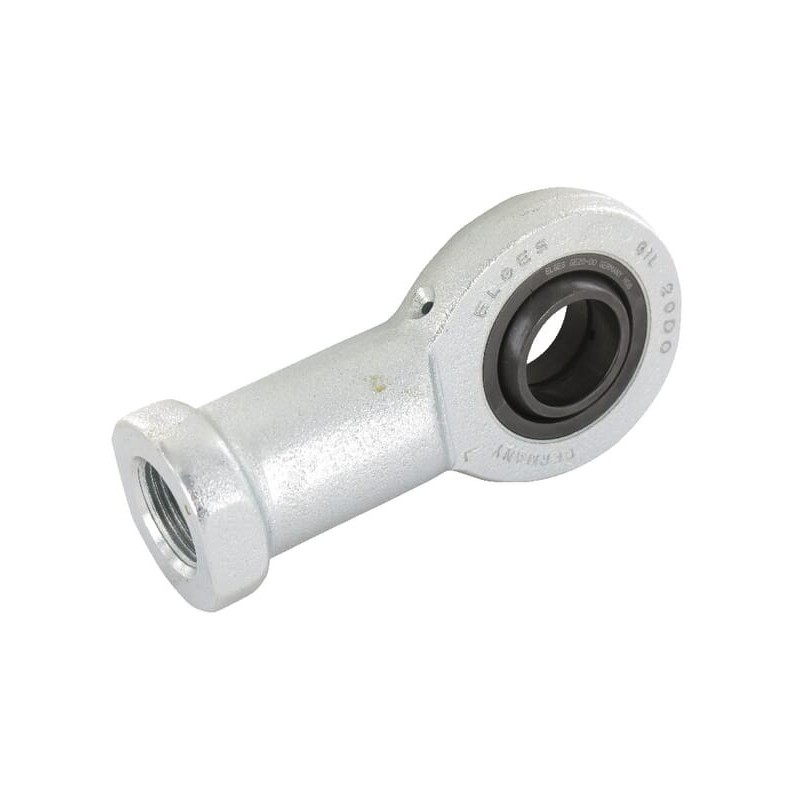

      Rod head, left-hand thread - GIL12DOINA
      Rod head, left-hand thread - GIL12DOINA
      Rod head, left-hand thread - GIL12DOINA
      Rod head, left-hand thread - GIL12DOINA
      Rod head, left-hand thread - GIL12DOINA

      Rod head, left-hand thread - GIL12DOINA

      Review (0)
      zł178.32
      Tax Included
      Return policy:14
      Rod head, left-hand thread - GIL12DOINA - Ball outside diameter: 18; Basic load ratings dyn. C: 10800, 10800N.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Rod head, left-hand thread - GIL12DOINA

      Reference number: GIL12DOINA.

      Product parameters:

      • Ball outside diameter: 18
      • Basic load ratings dyn. C: 10800, 10800N
      • Basic load ratings Stat. Co: 30400, 30400N
      • Basic radial load dynamic: 13900
      • Basic radial load static: 30400
      • Bearing outside diameter: 22
      • Bore diameter: 12
      • Bore length: 10
      • Diameter D4: 17.5, 17.5mm
      • Diameter D5: 22, 22mm
      • Distance basis center shaft: 50, 50mm
      • Edge angle: 11
      • Head outside diameter: 34
      • Head width (hole length): 8
      • Height base: 6.5
      • Height house: 8, 8mm
      • Height inner ring: 10, 10mm
      • Inside diameter: 12, 12.00, 12mm
      • Length: 67, 67mm
      • Length L5: 6.5, 6,5mm
      • Length L7: 18, 18mm
      • Manufacturer: Schaeffler
      • Outside diameter: 34.00, 34.00mm
      • Outside diameter basis: 19, 19mm
      • Outside diameter bearing: 22, 22mm
      • Outside diameter innerring: 14.9, 14.9mm
      • Sealing: No
      • Shaft to center distance: 50
      • Suitable for original number: GIL12-DO
      • Thickness plate: 11, 11°
      • Thread: 12 mm, M12mm
      • Thread diameter: M12
      • Thread direction: Left, Lewy
      • Thread length: 23, 23mm
      • Thread type: Metric
      • Total length: 67
      • Weight: 0.096, 0.096kg
      • Width: 34, 34mm
      INA
      GIL12DOINA

      Data sheet

      Manufacturer
      Schaeffler
      Plate Width
      34
      34mm
      Length
      67
      67mm
      Weight
      0.096
      0.096kg
      Additional info
      Hole length
      10
      Inside diameter
      12
      12.00
      12mm
      Total length
      67
      Bore diameter
      12
      Thread diameter
      M12
      Thread type
      Metric
      Thread length
      23
      23mm
      Bearing outside diameter
      22
      Outside diameter
      34.00
      34.00mm
      Suitable for original number
      GIL12-DO
      Thread

      12 mm
      M12
      M12mm
      Basic radial load static
      30400
      Basic radial load dynamic
      13900
      Thread direction
      Left
      Lewy
      Sealing
      No
      Head width (hole length)
      8
      Head outside diameter
      34
      S (max)
      11
      11°
      Diameter D4
      17.5
      17.5mm
      Height base
      6.5
      Basic load ratings dyn. C
      10800
      10800N
      Basic load ratings Stat. Co
      30400
      30400N
      Diameter D5
      22
      22mm
      Length L5
      6,5mm
      6.5
      Length L7
      18
      18mm
      Distance basis center shaft
      50
      50mm
      Height house
      8
      8mm
      Height inner ring
      10
      10mm
      Outside diameter bearing
      22
      22mm
      Outside diameter innerring
      14.9
      14.9mm
      Ball outside diameter
      18
      Edge angle
      11
      Shaft to center distance
      50
      Outside diameter basis
      19
      19mm
