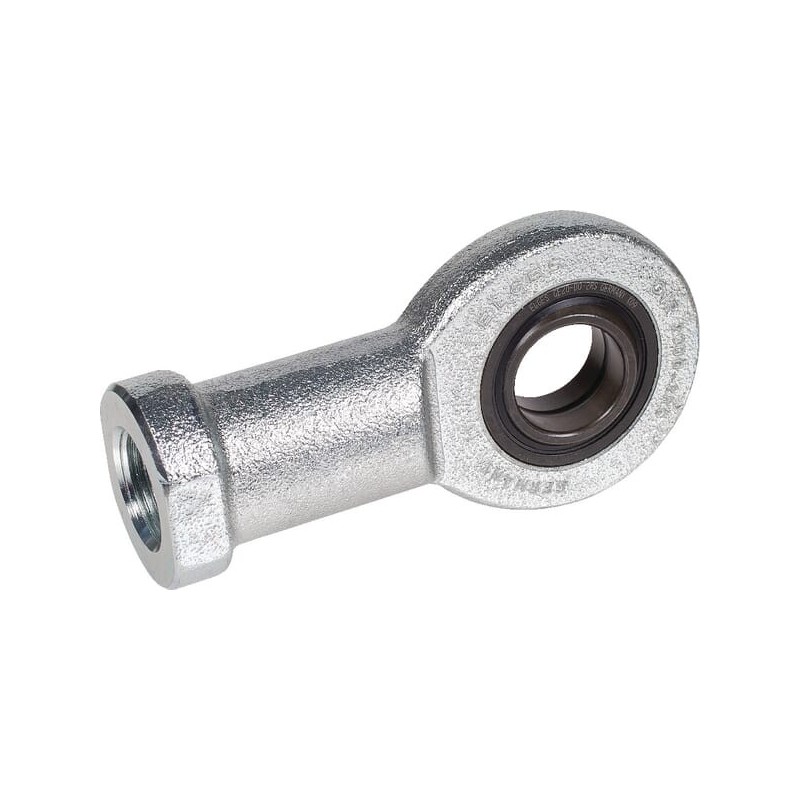

      Rod head - GIR30UK2RSAINA
      Rod head - GIR30UK2RSAINA
      Rod head - GIR30UK2RSAINA
      Rod head - GIR30UK2RSAINA

      Rod head - GIR30UK2RSAINA

      Review (0)
      zł733.94
      Tax Included
      Return policy:14
      Rod head - GIR30UK2RSAINA - Ball outside diameter: 40.7; Basic load ratings dyn. C: 165000.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Rod head - GIR30UK2RSAINA

      Reference number: GIR30UK2RSAINA.

      Product parameters:

      • Ball outside diameter: 40.7
      • Basic load ratings dyn. C: 165000
      • Basic load ratings Stat. Co: 139000, 139000N
      • Basic radial load dynamic: 165000
      • Basic radial load static: 139000
      • Bearing outside diameter: 47
      • Bore diameter: 30
      • Bore length: 22
      • Diameter D4: 40, 40mm
      • Distance basis center shaft: 110, 110mm
      • Edge angle: 6
      • Head outside diameter: 73
      • Head width (hole length): 19
      • Height base: 15
      • Height house: 19, 19mm
      • Height inner ring: 22, 22mm
      • Inside diameter: 30, 30.00, 30mm
      • Length: 146.5, 146.5mm
      • Length L5: 15, 15mm
      • Length L7: 37, 37mm
      • Manufacturer: Schaeffler
      • Outside diameter: 73.00, 73.00mm
      • Outside diameter basis: 41, 41mm
      • Outside diameter bearing: 47, 47mm
      • Outside diameter innerring: 34.2, 34.2mm
      • Sealing: Yes
      • Shaft to center distance: 110
      • Suitable for original number: GIR30-UK-2RS-A
      • Surface treatment: Ocynkowany
      • Thickness plate: 6, 6°
      • Thread: M30x2, M100 x 2, M30x2mm
      • Thread diameter: M30
      • Thread direction: Right
      • Thread length: 56, 56mm
      • Thread pitch: 2.00
      • Thread type: Metric
      • Total length: 146.5
      • Type: Gwint wewnętrzny
      • Weight: 0.97, 0.97kg
      • Width: 73, 73mm
      INA
      GIR30UK2RSAINA

      Data sheet

      Manufacturer
      Schaeffler
      Width
      73
      73mm
      Length
      146.5
      146.5mm
      Weight
      0.97
      0.97kg
      Additional info
      Bore length
      22
      Inside diameter
      30
      30.00
      30mm
      Total length
      146.5
      Type
      Female thread
      Female thread (in)
      Bore diameter
      30
      Thread diameter
      M30
      Thread pitch
      2.00
      Thread type
      Metric
      Thread length
      56
      56mm
      Bearing outside diameter
      47
      Outside diameter
      73.00
      73.00mm
      Suitable for original number
      GIR30-UK-2RS-A
      Thread
      M30x2
      M30x2mm
      M100 x 2
      Right Hand
      Basic radial load static
      139000
      Basic radial load dynamic
      165000
      Thread direction
      Right
      Surface treatment

      Ocynkowany
      Sealing
      Yes
      Head width (hole length)
      19
      Head outside diameter
      73
      S (max)
      6
      6°
      Diameter D4
      40
      40mm
      Height base
      15
      Basic load ratings dyn. C
      165000
      Basic load ratings Stat. Co
      139000
      139000N
      Length L5
      15
      15mm
      Length L7
      37
      37mm
      Distance basis center shaft
      110
      110mm
      Height house
      19
      19mm
      Height inner ring
      22
      22mm
      Outside diameter bearing
      47
      47mm
      Outside diameter innerring
      34.2
      34.2mm
      Ball outside diameter
      40.7
      Edge angle
      6
      Shaft to center distance
      110
      Outside diameter basis
      41
      41mm
