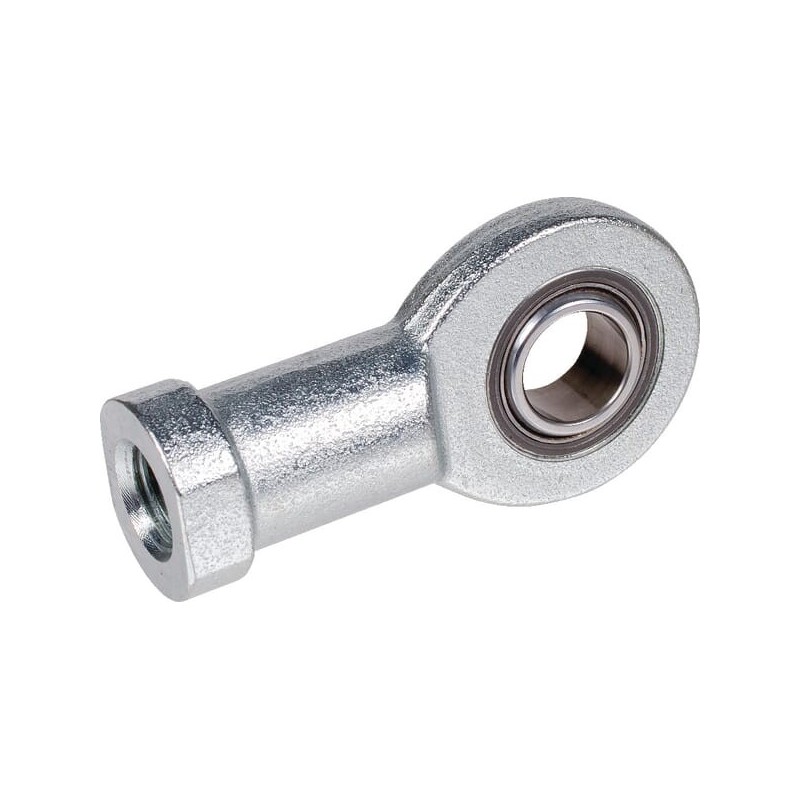

      Rod head, left-hand thread - GIL17UKINA
      Rod head, left-hand thread - GIL17UKINA
      Rod head, left-hand thread - GIL17UKINA
      Rod head, left-hand thread - GIL17UKINA
      Rod head, left-hand thread - GIL17UKINA

      Rod head, left-hand thread - GIL17UKINA

      Review (0)
      zł262.05
      Tax Included
      Return policy:14
      Rod head, left-hand thread - GIL17UKINA - Ball outside diameter: 25; Basic load ratings dyn. C: 22500, 22500N.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Rod head, left-hand thread - GIL17UKINA

      Reference number: GIL17UKINA.

      Product parameters:

      • Ball outside diameter: 25
      • Basic load ratings dyn. C: 22500, 22500N
      • Basic load ratings Stat. Co: 56500, 56500N
      • Basic radial load dynamic: 22500
      • Basic radial load static: 56500
      • Bearing outside diameter: 30
      • Bore diameter: 17
      • Bore length: 14
      • Diameter D4: 24, 24mm
      • Distance basis center shaft: 67, 67mm
      • Edge angle: 10
      • Head outside diameter: 46
      • Head width (hole length): 11
      • Height base: 10
      • Height house: 11, 11mm
      • Height inner ring: 14, 14mm
      • Inside diameter: 17, 17.00, 17mm
      • Length: 90, 90mm
      • Manufacturer: Schaeffler
      • Outside diameter: 46.00, 46.00mm
      • Outside diameter basis: 27, 27mm
      • Outside diameter bearing: 30, 30mm
      • Outside diameter innerring: 20.7, 20.7mm
      • Sealing: No
      • Shaft to center distance: 67
      • Suitable for original number: GIL17-UK
      • Thread: M16, M16mm
      • Thread diameter: M16
      • Thread direction: Left
      • Thread length: 34, 34mm
      • Thread type: Metric
      • Total length: 90
      • Weight: 0.25, 0.25kg
      • Width: 46, 46mm
      INA
      GIL17UKINA

      Data sheet

      Manufacturer
      Schaeffler
      Width
      46
      46mm
      Length
      90
      90mm
      Weight
      0.25
      0.25kg
      Additional info
      Bore length
      14
      Inside diameter
      17
      17.00
      17mm
      Total length
      90
      Bore diameter
      17
      Thread diameter
      M16
      Thread type
      Metric
      Thread length
      34
      34mm
      Bearing outside diameter
      30
      Outside diameter
      46.00
      46.00mm
      Suitable for original number
      GIL17-UK
      Thread

      M16
      M16
      M16mm
      Basic radial load static
      56500
      Basic radial load dynamic
      22500
      Thread direction
      Left
      Sealing
      No
      Head width (hole length)
      11
      Head outside diameter
      46
      Diameter D4
      24
      24mm
      Height base
      10
      Basic load ratings dyn. C
      22500
      22500N
      Basic load ratings Stat. Co
      56500
      56500N
      Distance basis center shaft
      67
      67mm
      Height house
      11
      11mm
      Height inner ring
      14
      14mm
      Outside diameter bearing
      30
      30mm
      Outside diameter innerring
      20.7
      20.7mm
      Ball outside diameter
      25
      Edge angle
      10
      Shaft to center distance
      67
      Outside diameter basis
      27
      27mm
