      Rod head, left-hand thread - GIL6UKINA
      Rod head, left-hand thread - GIL6UKINA
      Rod head, left-hand thread - GIL6UKINA
      Rod head, left-hand thread - GIL6UKINA
      Rod head, left-hand thread - GIL6UKINA

      Rod head, left-hand thread - GIL6UKINA

      Review (0)
      zł169.62
      Tax Included
      Return policy:14
      Rod head, left-hand thread - GIL6UKINA - Ball outside diameter: 10; Basic load ratings dyn. C: 3600, 3600N.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

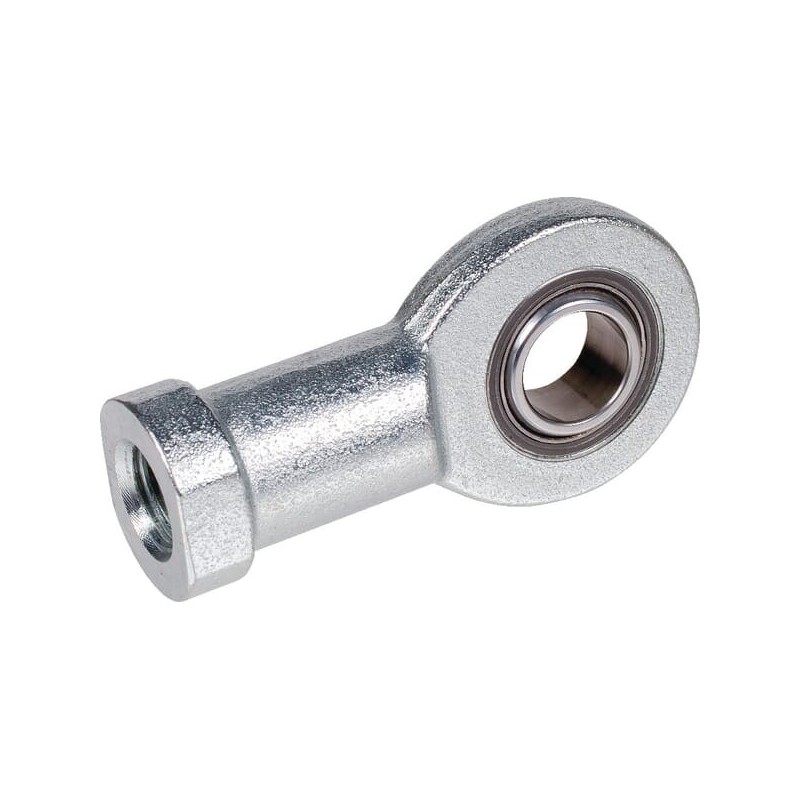

      Rod head, left-hand thread - GIL6UKINA

      Reference number: GIL6UKINA.

      Product parameters:

      • Ball outside diameter: 10
      • Basic load ratings dyn. C: 3600, 3600N
      • Basic load ratings Stat. Co: 10300
      • Basic radial load dynamic: 3600
      • Basic radial load static: 10300
      • Bearing outside diameter: 14
      • Bore diameter: 6
      • Bore length: 6
      • Diameter D4: 80
      • Diameter D5: 98
      • Distance basis center shaft: 30, 30mm
      • Edge angle: 13
      • Head outside diameter: 21
      • Head width (hole length): 4.4
      • Height base: 5
      • Height house: 4.4, 4,4mm
      • Height inner ring: 6, 6mm
      • Inside diameter: 6, 6.00, 6mm
      • Length: 40.5, 40.5mm
      • Length L5: 20, 20mm
      • Length L7: 87
      • Manufacturer: Schaeffler
      • Outside diameter: 21.00, 21.00mm
      • Outside diameter basis: 11
      • Outside diameter bearing: 14, 14mm
      • Outside diameter innerring: 8, 8mm
      • Sealing: No
      • Shaft to center distance: 30
      • Suitable for original number: GIL6-UK
      • Thread: M6, M6mm
      • Thread diameter: M6
      • Thread direction: Left
      • Thread length: 60, 11, 60mm
      • Thread type: Metric
      • Total length: 40.5
      • Weight: 23, 23g
      • Width: 21, 21mm
      INA
      GIL6UKINA

      Data sheet

      Manufacturer
      Schaeffler
      Width
      21
      21mm
      Length
      40.5
      40.5mm
      Weight
      23
      23g
      Additional info
      Bore length
      6
      Inside diameter
      6
      6.00
      6mm
      Total length
      40.5
      Bore diameter
      6
      Thread diameter
      M6
      Thread type
      Metric
      Thread length
      11
      60
      60mm
      Bearing outside diameter
      14
      Outside diameter
      21.00
      21.00mm
      Suitable for original number
      GIL6-UK
      Thread

      M6
      M6mm
      Basic radial load static
      10300
      Basic radial load dynamic
      3600
      Thread direction
      Left
      Sealing
      No
      Head width (hole length)
      4.4
      Head outside diameter
      21
      Diameter D4
      80
      Height base
      5
      Basic load ratings dyn. C
      3600
      3600N
      Basic load ratings Stat. Co
      10300
      Diameter D5
      98
      Length L5
      20
      20mm
      Length L7
      87
      Distance basis center shaft
      30
      30mm
      Height house
      4,4mm
      4.4
      Height inner ring
      6
      6mm
      Outside diameter bearing
      14
      14mm
      Outside diameter innerring
      8
      8mm
      Ball outside diameter
      10
      Edge angle
      13
      Shaft to center distance
      30
      Outside diameter basis
      11
