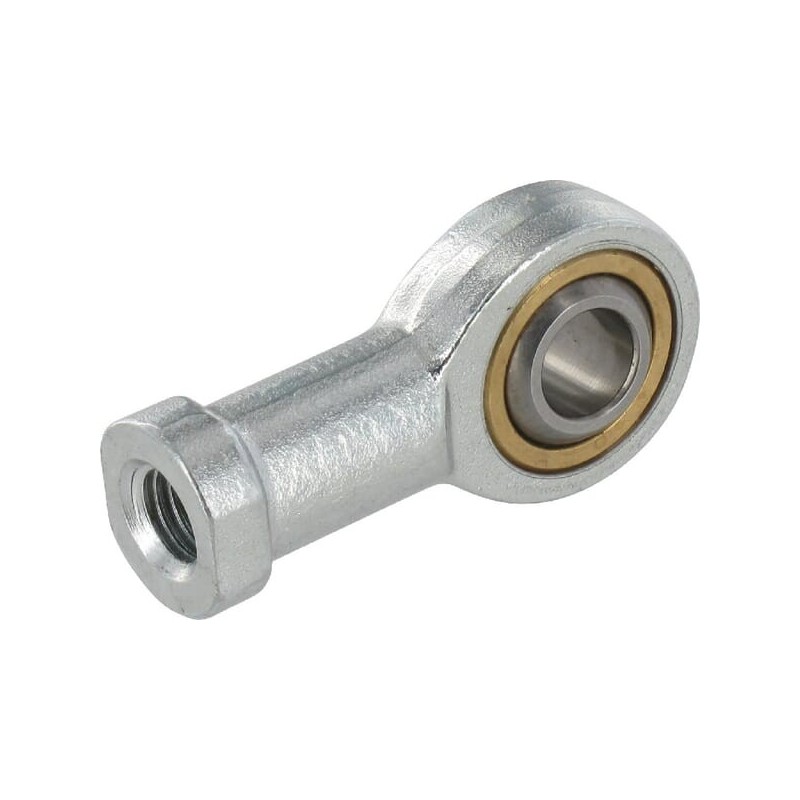

      Rod head - GIKR12PWAINA
      Rod head - GIKR12PWAINA
      Rod head - GIKR12PWAINA
      Rod head - GIKR12PWAINA
      Rod head - GIKR12PWAINA

      Rod head - GIKR12PWAINA

      Review (0)
      zł175.06
      Tax Included
      Return policy:14
      Rod head - GIKR12PWAINA - Ball outside diameter: 22.2; Basic load ratings dyn. C: 24000, 24000N.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Rod head - GIKR12PWAINA

      Reference number: GIKR12PWAINA.

      Product parameters:

      • Ball outside diameter: 22.2
      • Basic load ratings dyn. C: 24000, 24000N
      • Basic load ratings Stat. Co: 20800, 20800N
      • Basic radial load dynamic: 24000
      • Basic radial load static: 20800
      • Bearing outside diameter: 26
      • Bore diameter: 12
      • Bore length: 16
      • Connection diameter: 22, 22mm
      • Diameter D4: 17.5, 17.5mm
      • Distance basis center shaft: 50, 50mm
      • Edge angle: 13
      • Head outside diameter: 32
      • Head width (hole length): 12
      • Height base: 6.5
      • Height house: 12, 12mm
      • Height inner ring: 16, 16mm
      • Inside diameter: 12, 12.00, 12mm
      • Length: 66, 66mm
      • Length L5: 6.5, 6,5mm
      • Length L7: 17, 17mm
      • Manufacturer: Schaeffler
      • Outside diameter: 32.00, 32.00mm
      • Outside diameter ball: 22.22
      • Outside diameter basis: 19, 19mm
      • Outside diameter bearing: 26, 26mm
      • Outside diameter innerring: 15.4, 15.4mm
      • Sealing: No
      • Shaft to center distance: 50
      • Suitable for original number: GIKR12-PW-A
      • Surface treatment: Ocynkowany
      • Thread: 12 mm, M39 x 3, M35x1.5, M12mm
      • Thread diameter: M12
      • Thread direction: Right, Prawy
      • Thread length: 22, 22mm
      • Thread type: Metric
      • Total length: 66
      • Type: Gwint wewnętrzny
      • Weight: 0.12, 0.12kg
      • Width: 32, 32mm
      INA
      GIKR12PWAINA
      12 Items

      Data sheet

      Manufacturer
      Schaeffler
      Width
      32
      32mm
      Length
      66
      66mm
      Weight
      0.12
      0.12kg
      Additional info
      Bore length
      16
      Inside diameter
      12
      12.00
      12mm
      Total length
      66
      Type
      Female thread
      Female thread (in)
      Bore diameter
      12
      Thread diameter
      M12
      Thread type
      Metric
      Thread length
      22
      22mm
      Bearing outside diameter
      26
      Outside diameter
      32.00
      32.00mm
      Suitable for original number
      GIKR12-PW-A
      Thread
      12 mm
      M12
      M12mm
      M35x1.5
      M39 x 3
      Right
      Right Hand
      Basic radial load static
      20800
      Basic radial load dynamic
      24000
      Thread direction
      Prawy
      Right
      Surface treatment

      Ocynkowany
      Connection diameter
      22
      22mm
      Sealing
      No
      Head width (hole length)
      12
      Head outside diameter
      32
      Diameter D4
      17.5
      17.5mm
      Height base
      6.5
      Basic load ratings dyn. C
      24000
      24000N
      Basic load ratings Stat. Co
      20800
      20800N
      Length L5
      6,5mm
      6.5
      Length L7
      17
      17mm
      Distance basis center shaft
      50
      50mm
      Height house
      12
      12mm
      Height inner ring
      16
      16mm
      Outside diameter ball
      22.22
      Outside diameter bearing
      26
      26mm
      Outside diameter innerring
      15.4
      15.4mm
      Ball outside diameter
      22.2
      Edge angle
      13
      Shaft to center distance
      50
      Outside diameter basis
      19
      19mm
