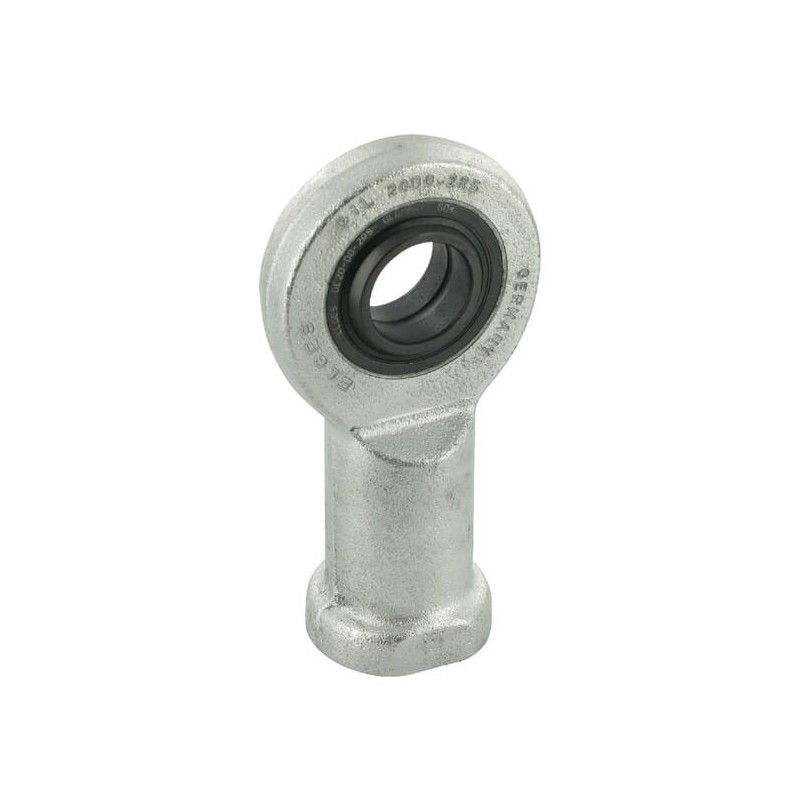

      Rod head, left-hand thread - GIL20DO2RSINA
      Rod head, left-hand thread - GIL20DO2RSINA
      Rod head, left-hand thread - GIL20DO2RSINA
      Rod head, left-hand thread - GIL20DO2RSINA
      Rod head, left-hand thread - GIL20DO2RSINA

      Rod head, left-hand thread - GIL20DO2RSINA

      Review (0)
      zł328.36
      Tax Included
      Return policy:14
      Rod head, left-hand thread - GIL20DO2RSINA - Ball outside diameter: 29; Basic load ratings dyn. C: 29600, 29600N.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Rod head, left-hand thread - GIL20DO2RSINA

      Reference number: GIL20DO2RSINA.

      Product parameters:

      • Ball outside diameter: 29
      • Basic load ratings dyn. C: 29600, 29600N
      • Basic load ratings Stat. Co: 75600, 75600N
      • Basic radial load dynamic: 38500
      • Basic radial load static: 75600
      • Bearing outside diameter: 35
      • Bore diameter: 20
      • Bore length: 16
      • Diameter D4: 27.5
      • Diameter D5: 35
      • Distance basis center shaft: 77
      • Edge angle: 9
      • Head outside diameter: 53
      • Head width (hole length): 13
      • Height base: 10
      • Height house: 13, 13mm
      • Height inner ring: 16, 16mm
      • Inside diameter: 25/32, 20.00, 20mm
      • Length: 103.5, 103.5mm
      • Length L5: 10, 10mm
      • Length L7: 27, 27mm
      • Manufacturer: Schaeffler
      • Outside diameter: 53.00, 53.00mm
      • Outside diameter basis: 32
      • Outside diameter bearing: 35, 35mm
      • Outside diameter innerring: 24.1, 24.1mm
      • Sealing: Yes
      • Shaft to center distance: 77
      • Suitable for original number: GIL20-DO-2RS
      • Thickness plate: 9, 9°
      • Thread: M20 x 1.5, M20x1.5mm
      • Thread diameter: M20
      • Thread direction: Left, Lewy
      • Thread length: 40, 40mm
      • Thread pitch: 1.50
      • Thread type: Metric
      • Total length: 103.5
      • Weight: 0.36, 0.36kg
      • Width: 53, 53mm
      INA
      GIL20DO2RSINA

      Data sheet

      Manufacturer
      Schaeffler
      Width
      53
      53mm
      Length
      103.5
      103.5mm
      Weight
      0.36
      0.36kg
      Additional info
      Hole length
      16
      Inside diameter
      20
      20.00
      20mm
      25/32
      Total length
      103.5
      Bore diameter
      20
      Diameter
      M20
      Thread pitch
      1.50
      Thread type
      Metric
      Thread length
      40
      40mm
      Bearing outside diameter
      35
      Outside diameter
      53.00
      53.00mm
      Suitable for original number
      GIL20-DO-2RS
      Thread

      M20 x 1.5
      M20x1.5
      M20x1.5mm
      Basic radial load static
      75600
      Basic radial load dynamic
      38500
      Thread direction
      Left
      Lewy
      Sealing
      Yes
      Head width (hole length)
      13
      Head outside diameter
      53
      S (max)
      9
      9°
      Diameter D4
      27.5
      Height base
      10
      Basic load ratings dyn. C
      29600
      29600N
      Basic load ratings Stat. Co
      75600
      75600N
      Diameter D5
      35
      Length L5
      10
      10mm
      Length L7
      27
      27mm
      Distance basis center shaft
      77
      Height house
      13
      13mm
      Height inner ring
      16
      16mm
      Outside diameter bearing
      35
      35mm
      Outside diameter innerring
      24.1
      24.1mm
      Ball outside diameter
      29
      Edge angle
      9
      Shaft to center distance
      77
      Outside diameter basis
      32
