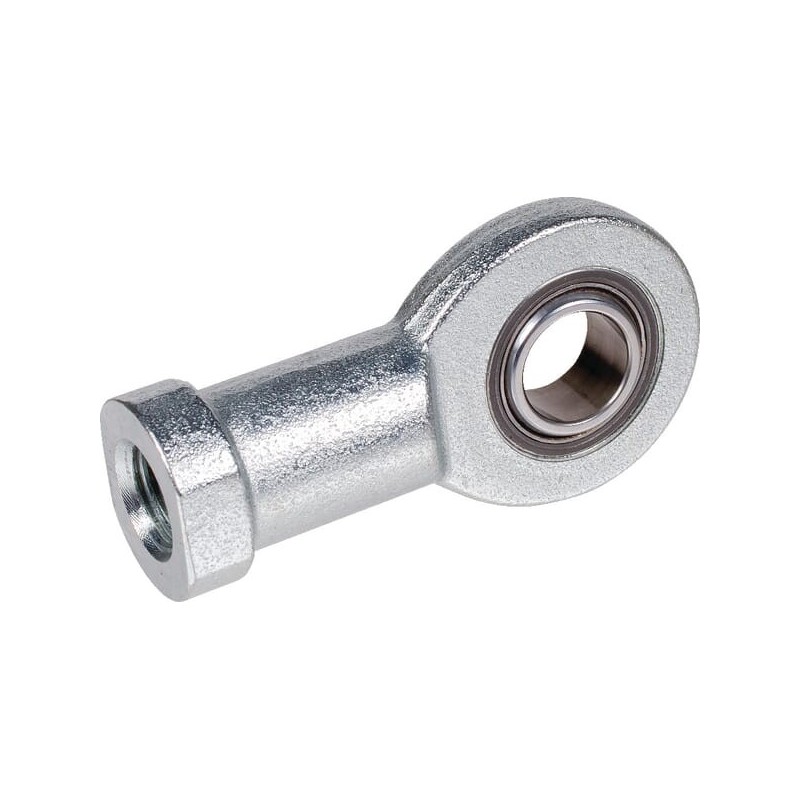

      Rod head, left-hand thread - GIL10UKINA
      Rod head, left-hand thread - GIL10UKINA
      Rod head, left-hand thread - GIL10UKINA
      Rod head, left-hand thread - GIL10UKINA
      Rod head, left-hand thread - GIL10UKINA

      Rod head, left-hand thread - GIL10UKINA

      Review (0)
      zł178.32
      Tax Included
      Return policy:14
      Rod head, left-hand thread - GIL10UKINA - Ball outside diameter: 16; Basic load ratings dyn. C: 8640, 8640N.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Rod head, left-hand thread - GIL10UKINA

      Reference number: GIL10UKINA.

      Product parameters:

      • Ball outside diameter: 16
      • Basic load ratings dyn. C: 8640, 8640N
      • Basic load ratings Stat. Co: 22000
      • Basic radial load dynamic: 8640
      • Basic radial load static: 22000
      • Bearing outside diameter: 19
      • Bore diameter: 10
      • Bore length: 9
      • Diameter D4: 15
      • Distance basis center shaft: 43
      • Edge angle: 12
      • Head outside diameter: 29
      • Head width (hole length): 7
      • Height base: 6.5
      • Height house: 7, 7mm
      • Height inner ring: 9, 9mm
      • Inside diameter: 10, 10.00, 10mm
      • Length: 57.5, 57.5mm
      • Manufacturer: Schaeffler
      • Outside diameter: 29.00, 29.00mm
      • Outside diameter basis: 17
      • Outside diameter bearing: 19, 19mm
      • Outside diameter innerring: 13.2, 13.2mm
      • Sealing: No
      • Shaft to center distance: 43
      • Suitable for original number: GIL10-UK
      • Thread: M24 x 2, M10mm
      • Thread diameter: M10
      • Thread direction: Left
      • Thread length: 20, 20mm
      • Thread type: Metric
      • Total length: 57.5
      • Weight: 66, 66g
      • Width: 29, 29mm
      INA
      GIL10UKINA

      Data sheet

      Manufacturer
      Schaeffler
      Width
      29
      29mm
      Total length
      57.5
      57.5
      57.5mm
      Weight
      66
      66g
      Additional info
      Hole length
      9
      Inside diameter
      10
      10.00
      10mm
      Bore diameter
      10
      Thread diameter
      M10
      Thread type
      Metric
      Thread length
      20
      20mm
      Bearing outside diameter
      19
      Outside diameter
      29.00
      29.00mm
      Suitable for original number
      GIL10-UK
      Thread

      M10
      M10mm
      M24 x 2
      Basic radial load static
      22000
      Basic radial load dynamic
      8640
      Thread direction
      Left
      Sealing
      No
      Head width (hole length)
      7
      Head outside diameter
      29
      Diameter D4
      15
      Height base
      6.5
      Basic load ratings dyn. C
      8640
      8640N
      Basic load ratings Stat. Co
      22000
      Distance basis center shaft
      43
      Height house
      7
      7mm
      Height inner ring
      9
      9mm
      Outside diameter bearing
      19
      19mm
      Outside diameter innerring
      13.2
      13.2mm
      Ball outside diameter
      16
      Edge angle
      12
      Shaft to center distance
      43
      Outside diameter basis
      17

      Specific References
