Data sheet

Width

60
60mm

Height

111
111mm

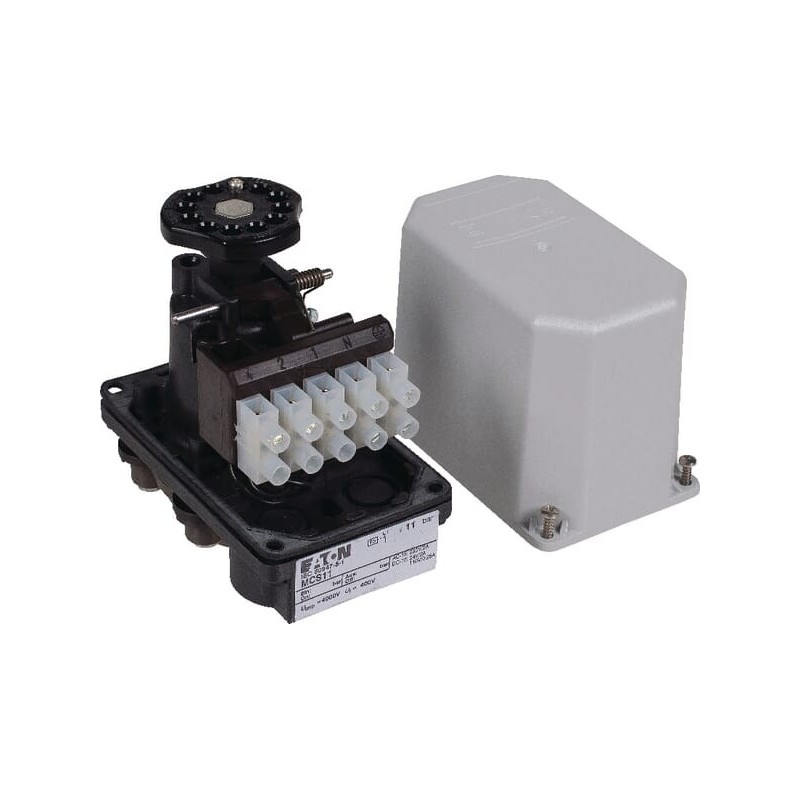

Product description

Przełączniki ciśnieniowe, presostaty MCS ze stykami pomocniczymi. Wyposażone w 2 wstępnie perforowane złącza dla M20, bez gwintu.

Additional info

- Cut-in pressure 0 - 10.4 bar adjustable- Cut-out pressure 0 - 11 bar adjustable- Contacts: 1x change-over contact- AC-15 230VAC 2A- DC-13 24V 2A- Maximum operating pressure 15 bar- Connection: 1/4"

Szczegóły produktu

- Stopień ochrony IP65||- Regulowany punkt przełączania||- Min. temperatura otoczenia -25°C||- Max. temperatura otoczenia +70°C

Depth

96
96mm

Max pressure peak

15000

Burst pressure

90
90BAR

Diameter

0mm

Insulation class

65
65

Średnica gwintu przyłącza nr 1

1/4cal

Type of electric connection

Połączenie śrubowe
Screw connection

Manufacturer Product ID

088527

Explosion-tested version

Nie
No

Number of normally open contacts as main contact

Number of auxiliary contacts as normally open contact

Number of auxiliary contacts as normally closed contact

Measuring pressure range

0-15

Connection

Gwint wewnętrzny walcowy BSPP-G (ISO 228-1)
Internal thread cylindrical BSPP-G (ISO 228-1)

Switch off pressure

0-11

With display

Nie
No

Adjustable current range

0-0
0.0-0.0A

Max. operating pressure

15000

Electronic version

Nie
No

Rated voltage (Ue) at AC 50 Hz

0-230

Rated voltage (Ue) at AC 60 Hz

0-230

Rated voltage (Ue) at DC

0-110

End setting

0-0
0.0-0.0hPa

Engaging pressure

0.0-10.4

Initial value measuring range pressure

0Pa

Initial setting

0-0
0.0-0.0hPa

Max. test pressure

32
32BAR

Medium temperature

25-80
25.0-80.0°C

Number of normally closed contacts as main contact

Pressure-switching differential

11

Suitable as 2-point controller

Tak
Yes

Suitable as guard

Tak
Yes

Suitable as limiter

Nie
No

With hand operation

Nie
No

With manual on/off switch

Nie
No

Number of auxiliary contacts as change-over contact

1

Connection 1, thread diameter

1/4
