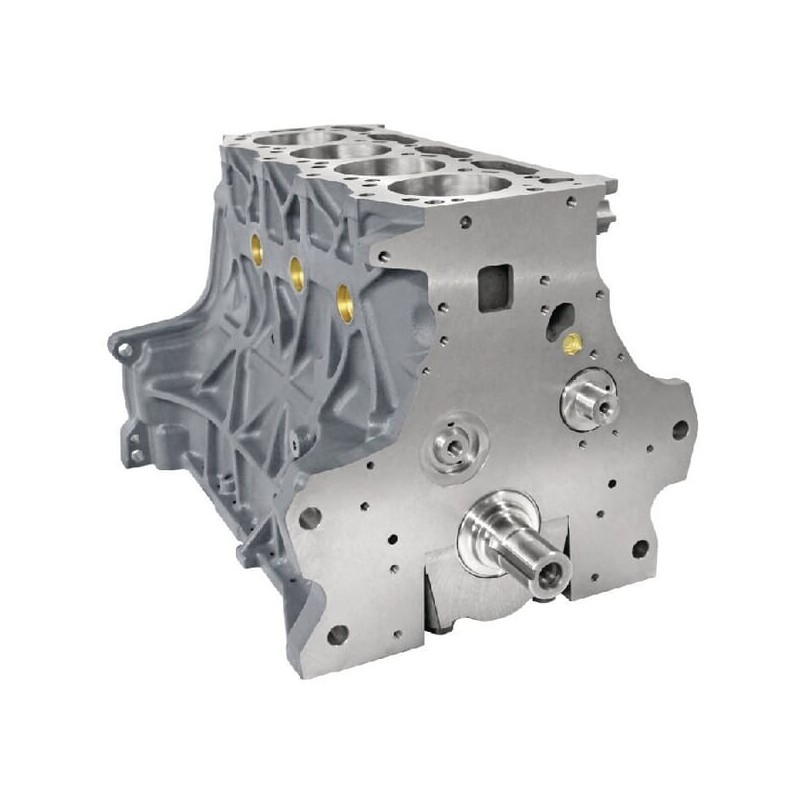

The Short Motors are built in the U.K. by our engineers who ensure all critical measurements are checked at every stage of the build process. The all new block is manufactured exclusively for Vapormatic, using the very latest “lost-foam” casting technique. 21st century foundry processes and the metallurgical specification deliver a high degree of accuracy and an excellent surface finish, both internally and externally. Product information & Technical specification: ; Engine Type: BSD444T ; Bore: 111.778mm ; Stroke: 111.778mm ; Cylinders: 4 ; Type: Turbo ; Crankshaft type: 76 teeth, 15.4mm balancer gear ; Balancer type: 15.4mm gear VPD1614 & VPD1615 ; Cylinder head bolt size: 9/16” UNC Typical applications: ; Direct replacement, BSD444T: 7600, 7700, 6810, 7610, 7710 ; Also replaces, BSD442T: 7000, 7600 Earlier specification engines with ½” UNC thread cylinder head bolts will also require cylinder head bolt kit VPA3924 and VPA5083 timing cover kit bolt kits to complete installation of the New Short Motor. …You will need the following additional items: ; Cylinder head gasket: VPA4303 ; Cylinder head gasket set: VPA4103 ; Bottom gasket set: VPC6106 ; Does not include rear seal housing ; Other items may also be needed dependant on history of machine

Original number equivalent

E6NN6009AGC

Type

Content in sale unit

1

Consists of

Suitable for machine/vehicle engine model

BSD444T

Number of cylinders

4

Crank shaft diameter

15.4

Piston stroke

111.778

Engine type

Turbocharged engine

Yes

Cylinder head bolt size

9/16
