Data sheet

Additional info

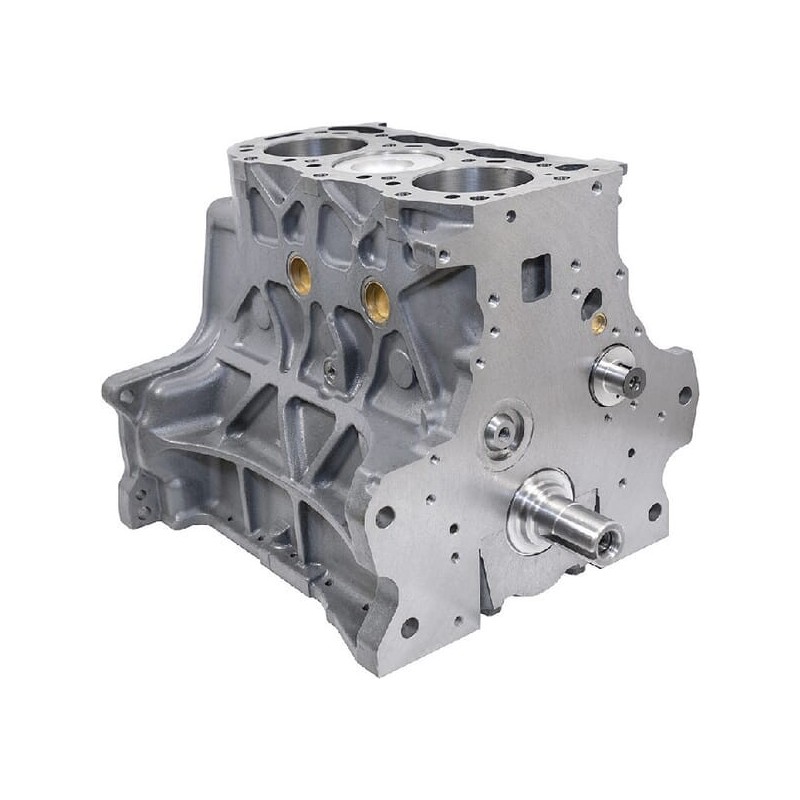

The Short Motors are built in the U.K. by our engineers who ensure all critical measurements are checked at every stage of the build process. The all new block is manufactured exclusively for Vapormatic, using the very latest “lost-foam” casting technique. 21st century foundry processes and metallurgical specification deliver a high degree of accuracy and an excellent surface finish, both internally and externally. Product information & Technical specification: ; Engine Type: BSD333 ; Bore: 111.778mm ; Stroke: 111.778mm ; Cylinders: 3 ; Cylinder head bolt size: 9/16” UNC Typical applications: ; Direct replacement, BSD333: 4000, 4600, 4610, 4130, 4330, 4630 ; Also replaces, BSD326, BSD329, BSD330 & BSD332 - 2000, 3000, 2600, 3600, 3900, 4100, 2310, 2610, 2810, 2910, 4110, 3230, 3430, 3930. Earlier specification engines with ½” UNC thread cylinder head bolts will also require cylinder head bolt kit VPA3913 and VPA5083 timing cover kit bolt kits to complete installation of the New Short Motor. VPA5080 may also be required You will need the following additional items: ; Cylinder head gasket: VPA4301 ; Cylinder head gasket set: VPA4101 ; Bottom gasket set: VPC6105 ; Oil pump is included and must be fitted. ; Does not include rear seal housing ; Other items may also be needed dependant on history of machine

Content in sale unit

1

Suitable for machine/vehicle engine model

BSD333

Number of cylinders

3

Piston stroke

111.778

Engine type

Cylinder head bolt size

9/16

Specific References
