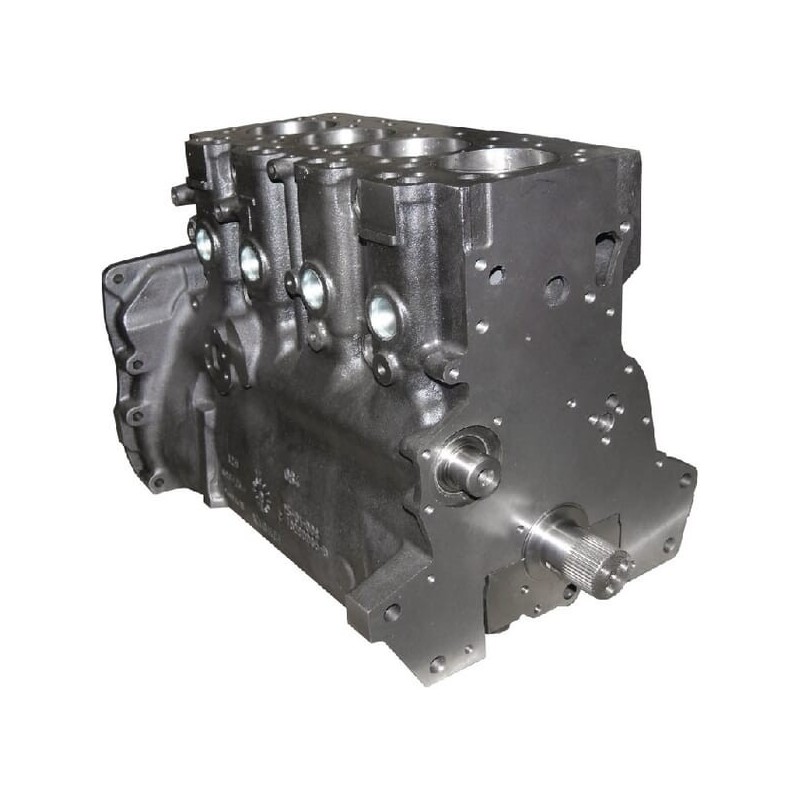

Product information & Technical specification ..VPB8030 – Perkins A4.248 ;Bore: 101mm ;Stroke: 127mm ;Cylinders: 4 ;Non Turbo ;Rear seal: Lip ;Balancer type: both 4 and 6 bolt ;Kit contains ;Cylinder block – Later spec, cylinder head threads recessed in the block. ;Pistons – 3 ring type, VPB2200 ;Liners – Less fire ring, VPB1025 ;Rings – 3 ring type, VPB4190 ;Crankshaft – long web VPC1011, with 3 bolt crank pulley fixing (Included VPC4105) ;Camshaft and followers – VPA2510 & VPA2603 ;Bearing shells and Thrust washers ;Typical applications: 178, 185, 188, 285, 290, 590, 690, 390, Plus many more Industrial and Agri applications …You will need the following additional items: ;Cylinder head gasket set: VPA4154 – less fire ring liners ;Bottom gasket set: VPC6137 ;Cylinder head bolt kit: VPA3920

Type

Content in sale unit

1

Consists of

Suitable for machine/vehicle engine model

Perkins A4.248

Number of cylinders

4

Piston stroke

127

Engine type

Turbocharged engine

No
