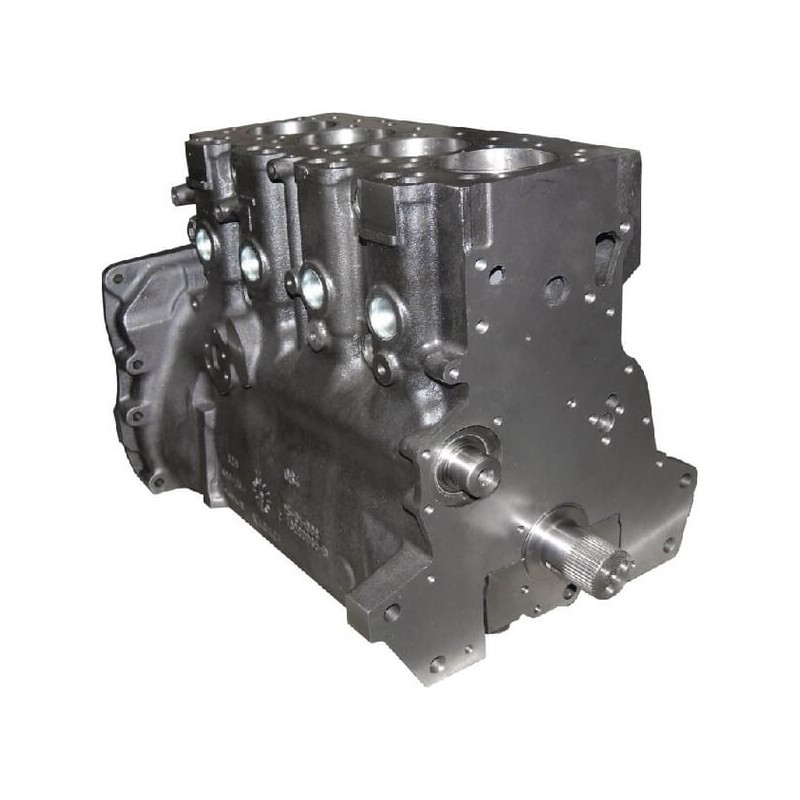

Product information & Technical specification VPB8029 – Perkins A4.236 Bore: 98mm Stroke: 127mm Cylinders: 4 Non Turbo Rear seal: Lip Balancer type: both 4 and 6 bolt Kit contains: * Cylinder block – Later spec, cylinder head threads recessed in the block. * Pistons – 5 ring type, VPB2090 * Liners – Less fire ring, VPB1023 * Rings – 5 ring type, VPB4090 * Crankshaft – long web VPC1011, with 3 bolt crank pulley fixing (Included VPC4105) * Camshaft and followers – VPA2510 & VPA2603 * Bearing shells and Thrust washers Typical applications: 168, 175, 265, 275, 565, 575, 675, 365, 375, Plus many more Industrial and Agri applications You will need the following additional items: Cylinder head gasket set: VPA4154 – less fire ring liners Bottom gasket set: VPC6137 Cylinder head bolt kit: VPA3920

Original number equivalent

12 522 18-S

Type

Content in sale unit

1

Consists of

Suitable for machine/vehicle engine model

Perkins A4.236

Number of cylinders

4

Piston stroke

127

Engine type

Turbocharged engine

No

Specific References
