      Round cylinder - DNR2050M - Bore diameter: 20, 20mm; CETOP Code: RP52P.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

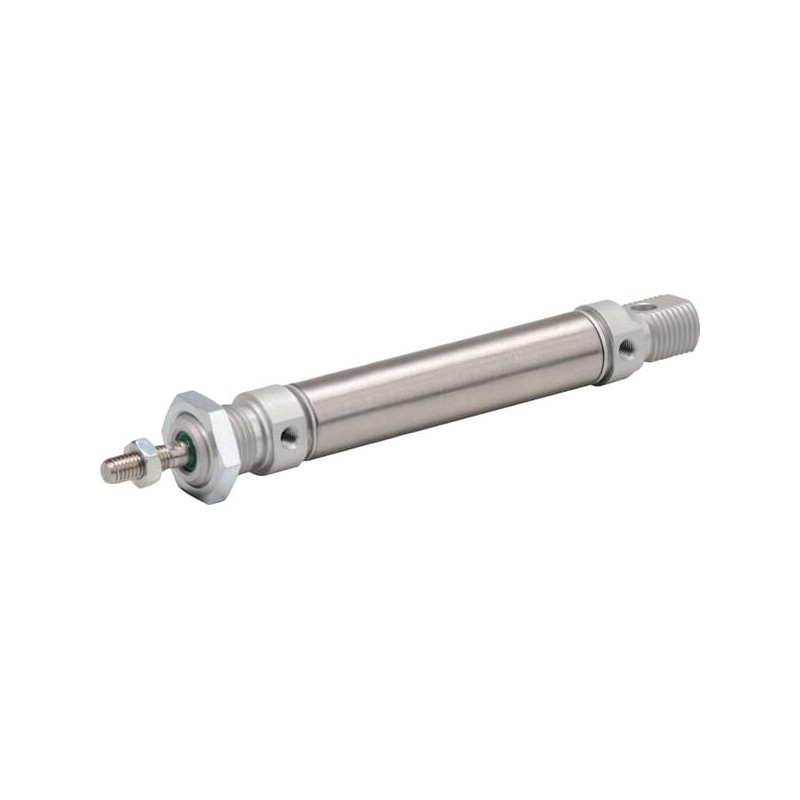

      Round cylinder - DNR2050M

      Reference number: DNR2050M.

      Product parameters:

      • Bore diameter: 20, 20mm
      • CETOP Code: RP52P
      • Cylinder head flange diameter: 27, 27mm
      • Cylinder head length: 24
      • Cylinder head material: Die-cast alloy, Odlew ciśnieniowy aluminium
      • Cylinder inside material: Bronze, Brąz
      • Cylinder length without rod and head: 67
      • Cylinder material: Stainless steel 304, Stal szlachetna 304
      • Cylinder nut width: 8, 8mm
      • Cylinder nut wrench size: 27.0, 27.0mm
      • Damping type: Flexible - both sides | Elastic – both sides, Elastyczny - obustronny
      • Housing front mounting holes thread diameter: M22
      • Housing front mounting holes thread pitch: 1.50, 1.50mm
      • ISO standard: 228/1 | 6432, 6432|228/1
      • Magnetic: Yes
      • Max pressure peak: 10, 10BAR
      • Min mounting holes diameter: 95, 95mm
      • Min working pressure: 1, 1BAR
      • Min. length: 181
      • Min. length without rod connection length: 111
      • Mounting diameter (width) - cylinder connection: 22, 22mm
      • Mounting head length: 20
      • Mounting hole center to head end distance: 12, 12mm
      • Mounting length - rod connection: 20
      • Mounting thread diameter - cylinder connection: 1/8, 1/8cal
      • Mounting thread diameter - rod connection: M8
      • Mounting thread type - cylinder connection: G
      • Mounting thread type - male/female - rod connection: Male, Męski
      • Mounting thread type - rod connection: Metric, Metryczny
      • Mounting type - cylinder side connection: Thread
      • Outside diameter: 21.3, 21,3mm
      • Piston material: Brass, Mosiądz
      • Rod diameter: 8, 8mm
      • Rod material: Stainless steel 303, Stal nierdzewna 303
      • Rod wrench size: 7.0, 7.0mm
      • Seal material: Polyurethane, Poliuretan
      • Series: 6432
      • Stroke: 50, 50mm
      • Theoretical force at 6 bar pressure - advancing: 172
      • Theoretical force at 6 bar pressure - retracting: 142
      • Typ mocowania - strona cylindra: Przykręcany
      • Type: Double acting, Dwustronne działanie
      Kramp
      DNR2050M
      40 Items

      Data sheet

      Outside diameter
      21,3mm
      21.3
      Type
      Double acting
      Dwustronne działanie
      ISO standard
      228/1 | 6432
      6432
      6432|228/1
      Max. operating pressure
      10
      10BAR
      Max working temperature
      80
      Min working temperature
      Series
      6432
      Min. mounting holes distance
      95
      95mm
      Min. working pressure
      1
      1BAR
      Connection thread diameter
      1/8
      Shaft thread diameter
      M8
      Sealing material
      Nitrile rubber [NBR] | Polyurethane
      Poliuretan
      Polyurethane
      Pipe diameter
      Stroke
      50
      50mm
      Norm
      Magnetic
      Bore diameter
      20
      20mm
      Typ mocowania - strona cylindra
      Przykręcany
      Mounting thread diameter - cylinder connection
      1/8
      1/8cal
      M22
      Mounting thread diameter - rod connection
      M8
      M8
      Min. length
      181
      Mounting type - cylinder side connection
      Bore
      Thread
      Rod diameter
      8
      8mm
      Shaft thread type
      Metric
      Connection thread type
      BSP
      Cylinder head flange diameter
      27
      27mm
      Cylinder head length
      24
      Cylinder nut width
      8
      8mm
      Cylinder nut wrench size
      27.0
      27.0mm
      Mounting thread type - cylinder connection
      G
      G
      Mounting thread type - rod connection
      Metric
      Metryczny
      Rod wrench size
      7.0
      7.0mm
      Mounting diameter (width) - cylinder connection
      8
      22
      22mm
      Rod material
      Stainless steel 303
      Stal nierdzewna 303
      Cylinder material
      Stainless steel 304
      Stal szlachetna 304
      Cylinder head material
      Die-cast alloy
      Odlew ciśnieniowy aluminium
      Housing front mounting holes thread diameter
      M22
      M22
      Housing front mounting holes thread pitch
      1.50
      1.50mm
      Cylinder length without rod and head
      67
      Mounting thread type - male/female - rod connection
      Male
      Męski
      Min. length without rod connection length
      111
      Mounting hole center to head end distance
      12
      12mm
      Mounting length - rod connection
      20
      Damping type
      Elastyczny - obustronny
      Flexible - both sides | Elastic – both sides
      Theoretical force at 6 bar pressure - advancing
      172
      Theoretical force at 6 bar pressure - retracting
      142
      Mounting head length
      20
      CETOP Code
      RP52P
      RP52P
      Cylinder inside material
      Bronze
      Brąz
      Piston material
      Brass
      Mosiądz
      Shaft thread pitch
      1.25
      Material cylinder piston
      Material piston rod guide bush
