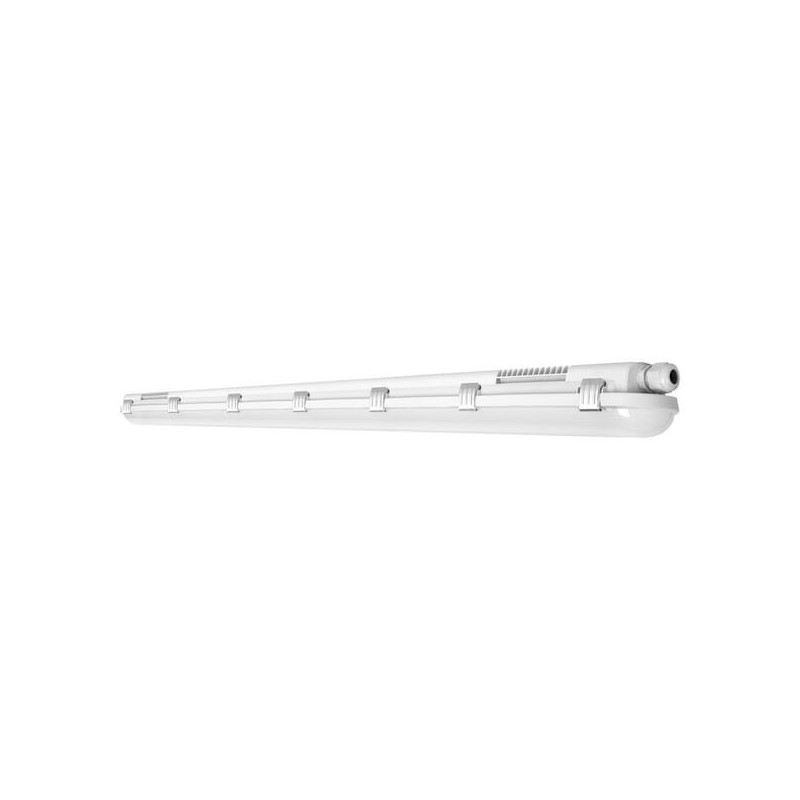

Light fitting LED - DP150046865G3

Reference number: DP150046865G3.

Product parameters:

• Beam angle: Extreme wide beam more than 80°, Wiązka bardzo szeroka powyżej 80°
• Beam angle adjustable: No, Nie
• Colour housing: Grey, Szary
• Colour of light adjustable: No, Nie
• Colour rendering index CRI: 80-89
• Colour temperature: 6500, 6500K
• Connection: Push-in clamp
• Cover material: Opal | Plastic, Tworzywo sztuczne|Opal
• Dimmable: No
• Emergency power supply integrated: No, Nie
• Exchangeable control gear: No, Nie
• Filament test according to IEC 60695-2-11: 850 °C - 30 s, 850°C - 30 s
• Height: 68, 68mm
• Impact strength class code: IK08
• Insulation class: 65
• Lamp type: LED not replaceable, Niewymienne diody LED
• Length (depth): 1500, 1500mm
• Light colour: White, Biały
• Light distributor type: Diffuser lens/optic/panel, Soczewka / układ optyczny / panel
• Light outlet: Direct, Bezpośredni
• Light sensor: No, Nie
• Light sharing type: Symmetric
• Luminaire efficancy: 139lm/W
• Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: Yes, Tak
• Luminous flux adjustable: No, Nie
• Manufacturer Product ID: 4058075541221
• Material housing: Plastic, Tworzywo sztuczne
• Max. number of luminaires per miniature circuit breaker B16 (MCB): 26
• Max. number of luminaires per miniature circuit breaker C16 (MCB): 38
• Max. system power: 46
• Movement sensor: No, Nie
• No dim function: Tak
• Nominal current: 340-340
• Number of poles: 3
• Operation by Bluetooth: No
• Power factor: 0.9, 0,9
• Protection class code: I
• Rated ambient temperature according to IEC 62722-2-1: -25-40, -25.0-40.0°C
• Rated life time L70/B50 at 25 °C: 70000, 70000h
• Rated luminous flux according to IEC 62722-2-1: 6400
• Rated voltage: 220.0-240.0, 220.0-240.0V
• Suitable for built-in mounting: No, Nie
• Suitable for ceiling mounting: Yes, Tak
• Suitable for clamp-mounting: No
• Suitable for emergency lighting: Nie, Yes
• Suitable for light line configuration: No, Nie
• Suitable for surface mounting: Yes, Tak
• Suitable for suspended mounting: Yes, Tak
• Suitable for workplace according to EN 12464-1: No, Nie
• Surface protection housing: None
• Type of connection: Wtyk samozaciskowy
• Type of control gear: Electronic ballast, Elektroniczny układ zapłonowy
• Type of wiring: Suitable for through wiring, Do okablowania przelotowego
• Voltage type: AC
• Wall mounting: Yes, Tak
• Width: 82, 82mm
• With control gear: Yes, Tak
• With light source: Yes, Tak
• Współczynnik harmonicznych (THD): 20
• Zabezpieczenie powierzchni obudowy: Brak
