      Thru beam transmitter - XUK0AKSAL2T
      Thru beam transmitter - XUK0AKSAL2T

      Thru beam transmitter - XUK0AKSAL2T

      Review (0)
      zł377.18
      Tax Included
      Return policy:14
      Thru beam transmitter - XUK0AKSAL2T - Height: 50mm; Insulation class: 65.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

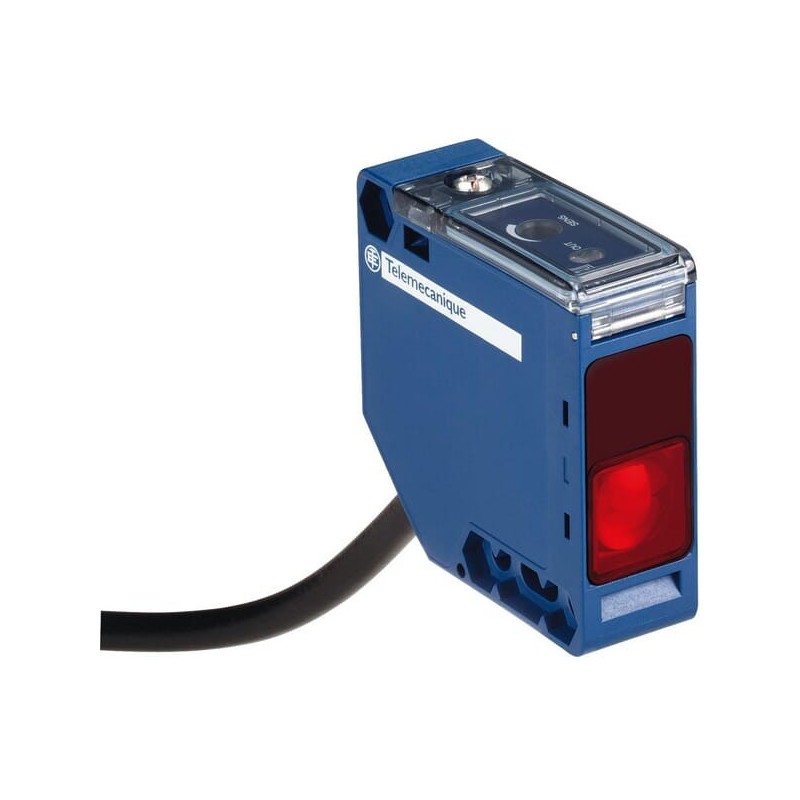

      Thru beam transmitter - XUK0AKSAL2T

      Reference number: XUK0AKSAL2T.

      Product parameters:

      • Height: 50mm
      • Insulation class: 65
      • Length of sensor: 50mm
      • Length of the preassembled cable: 2m
      • Light type: Światło zielone
      • Rodzaj konstrukcji obudowy: Sześcienny
      • Supply voltage: 12-24V
      • Switching frequency: 250Hz
      • Type of electric connection: Przewód
      • Voltage type: DC
      • Width sensor: 18mm
      Telemecanique
      XUK0AKSAL2T

      Data sheet

      Height
      50
      50mm
      Insulation class
      65
      65
      Housing material
      Plastic
      Type of electric connection
      Cable
      Przewód
      Manufacturer Product ID
      XUK0AKSAL2T
      Voltage type
      DC
      DC
      Light type
      Green light
      Suitable for safety functions
      No
      Material of cable sheath
      PVC
      Supply voltage
      12-24
      12-24V
      Rated control supply voltage Us at DC
      12-24
      Length of the preassembled cable
      2
      2m
      Length of sensor
      50
      50mm
      Number of semiconductor outputs with signalling function
      Response time
      2
      Ambient temperature
      -25-55
      Max. output current
      100
      Rated switching distance
      30000
      Switching frequency
      250
      250Hz
      Width sensor
      18
      18mm
      Rodzaj konstrukcji obudowy
      Sześcienny
      Max. output current at protected output
      100
      Operation agent-safety class
      Safety class 0
      Height of sensor
      50
      With communication interface RS-485
      No
      With communication interface RS-232
      No
      Type of safety according to IEC 61496-1
      1
      Protection class IP
      65
      Number of contact energized outputs with signalling function
      With restart blockage
      No
      Material of optical surface
      Plastic
      Analogue output 0 V ... 10 V
      No
      Analogue output 0 mA ... 20 mA
      No
      Analogue output 4 mA ... 20 mA
      No
      Analogue output -10 V ... +10 V
      No
      Max. switching distance
      35000
      Number of protected contact energized outputs
      Number of protected semiconductor outputs
      Pre failure notice
      No
      Scope of delivery of the one-way system
      Transmitter and receiver
      Sensing mode
      Light switching
      With communication interface RS-422
      No
      With communication interface analogue
      No
      With communication interface AS-Interface
      No
      With communication interface CANOpen
      No
      With communication interface DeviceNet
      No
      With communication interface Ethernet
      No
      With communication interface INTERBUS
      No
      With communication interface PROFIBUS
      No
      With communication interface SSD
      No
      With communication interface SSI
      No
      With monitoring function downstream switching devices
      No
      With other analogue output
      No
      With time function
      No
