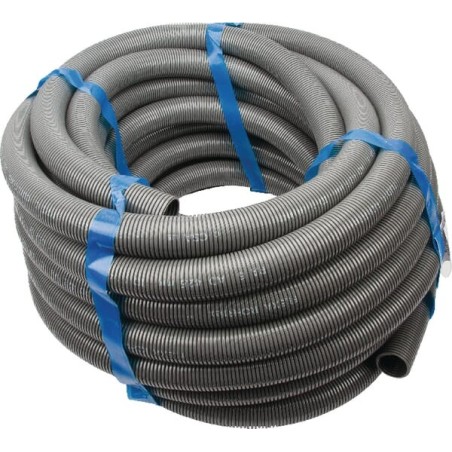

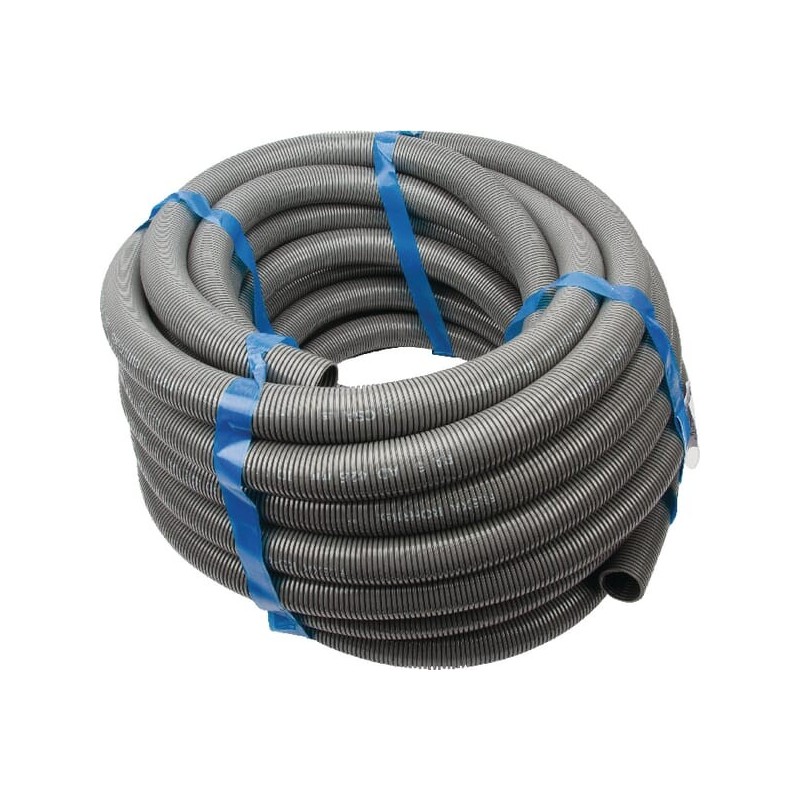

      Protection hose PG-36 - 233201036
      Protection hose PG-36 - 233201036
      Protection hose PG-36 - 233201036

      Protection hose PG-36 - 233201036

      Review (0)
      zł143.25
      Tax Included
      Return policy:14
      Protection hose PG-36 - 233201036 - Approved according to CSA: Yes, Tak; Approved according to DIN 5510: Yes.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Protection hose PG-36 - 233201036

      Reference number: 233201036.

      Product parameters:

      • Approved according to CSA: Yes, Tak
      • Approved according to DIN 5510: Yes
      • Approved according to DIN EN 61386-23: Yes, Tak
      • Approved according to Lloyd's Register TA: Yes, Tak
      • Approved according to LUL/British Standard: Yes, Tak
      • Approved according to NF F 16-101: Yes, Tak
      • Approved according to UR: Yes, Tak
      • Approved according to UTAC: No, Nie
      • Approved according to VdTÜV/GGVSEB: Yes
      • Bending radius, dynamic: 150
      • Bending radius, static: 90
      • Bending strength: Flexible, Elastyczny
      • Colour: Grey, Szary
      • Fire resistance according to UL94: V0
      • Flame accelerating: No, Nie
      • Halogen free: Yes, Tak
      • High conducting inner coating: No
      • Inner diameter: 36
      • Insulation class: 68
      • Lengthwise slotted: No, Nie
      • Manufacturer Product ID: 0233.201.036
      • Material: Polyamide, Poliamid
      • Material quality: Polyamide 6, Poliamid 6
      • Nominal diameter: 42.5
      • Oil resistant: Yes
      • Olejoodporność: Tak
      • Operating temperature: -40-115, -40.0-115.0°C
      • Outside diameter: 42.5
      • Sheathing material: n/a, Nie dotyczy
      • UV resistance: No, Nie
      • With remote control: No
      Flexa
      233201036

      Data sheet

      Colour
      Grey
      Szary
      Material
      Poliamid
      Polyamide
      Polyamide
      Material quality
      Poliamid 6
      Polyamide 6
      Outside diameter
      42.5
      Insulation class
      68
      68
      Manufacturer Product ID
      0233.201.036
      Operating temperature
      -40-115
      -40.0-115.0°C
      Halogen free
      Tak
      Yes
      Nominal diameter
      42.5
      UV resistance
      Nie
      No
      With draw wire
      No
      Approved according to CSA
      Tak
      Yes
      Approved according to DIN EN 61386-23
      Tak
      Yes
      Approved according to Lloyd's Register TA
      Tak
      Yes
      Approved according to LUL/British Standard
      Tak
      Yes
      Approved according to NF F 16-101
      Tak
      Yes
      Approved according to UR
      Tak
      Yes
      Approved according to UTAC
      Nie
      No
      Bending radius, dynamic
      150
      Bending radius, static
      90
      Bending strength
      Flexible
      Flexible
      Fire resistance according to UL94
      V0
      V0
      Flame accelerating
      Nie
      No
      Inner diameter
      36
      Lengthwise slotted
      Nie
      No
      Olejoodporność
      Tak
      Sheathing material
      Nie dotyczy
      n/a
      High conducting inner coating
      No
      Oil resistant
      Yes
      Approved according to DIN 5510
      Yes
      Approved according to VdTÜV/GGVSEB
      Yes
