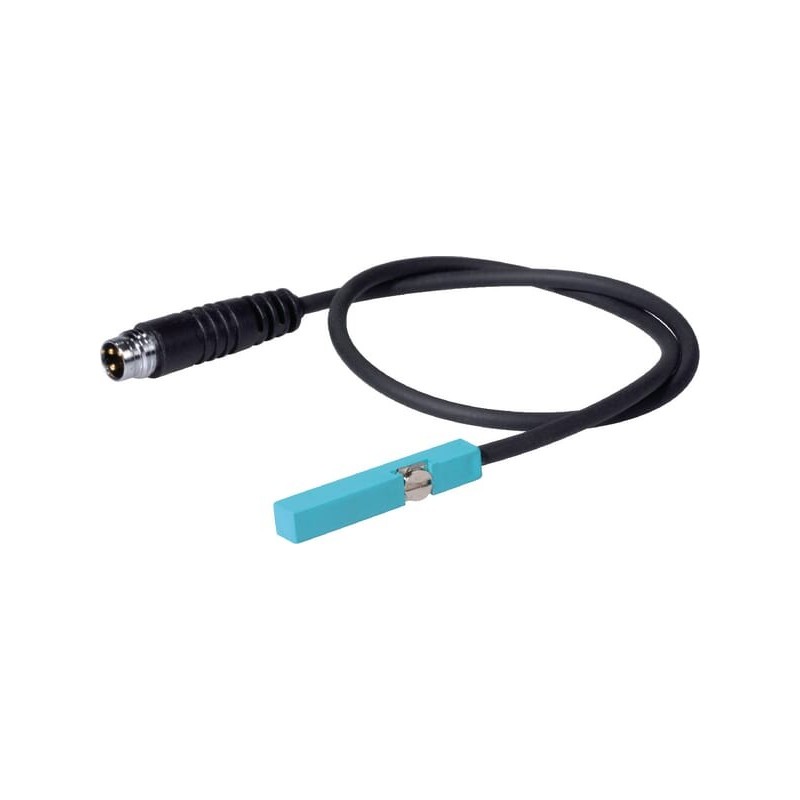

Sensor with plug - SENST8M8

Reference number: SENST8M8.

Product parameters:

• A: 32mm
• Cable outer diameter for cable gland: 3.0-3.0
• Connection: Kabel PUR 0,3 m, wtyczka M 8
• Connector diameter: 8
• Connector length: 35.4
• Distance bottom to mounting screw: 11
• Extra info: - Cable with M8 plug- Suitable for cylinders DIN ISO 21287, UNITOP, DIN ISO 6432, DIN ISO 15552, DIN ISO 15552, - Przewód z wtyczką M8||- Pasuje do siłowników DIN ISO 21287, UNITOP, DIN ISO 6432, DIN ISO 15552, DIN ISO 15552
• For cylinder: DIN ISO 21287, UNITOP, DIN ISO 6432, DIN ISO 15552, DIN ISO 15552
• Housing material: Plastic, Tworzywo sztuczne
• LED: Tak
• Length B: 5mm
• Length C: 11mm
• Length D: 3mm
• Length E: 35.4mm
• Length F: 8mm
• Length of sensor: 32
• Length of the preassembled cable: 0.3
• Limiting frequency: 2000
• Max. output current: 100
• Mounting type: T-slot, Rowek wzdłużny T 8 mm
• Prąd łączalny: max. 100 mAmA
• Protection class: IP 67
• Protection class IP: 67
• Rated supply voltage at AC 50 Hz: 10-30
• Rated supply voltage at DC: 10-30
• Switching frequency: max. 2 KHzHz
• Switching function: NO contact
• Switching voltage: 10 - 30V
• Type: Przełącznik zbliżeniowy do bezdotykowego odczytu za pośrednictwem pola magnetycznego
• Type of electric connection: Cable with connector
• Type of switching output: PNP
• Voltage type: AC | DC
• Width sensor: 5
• With LED indication: Yes
