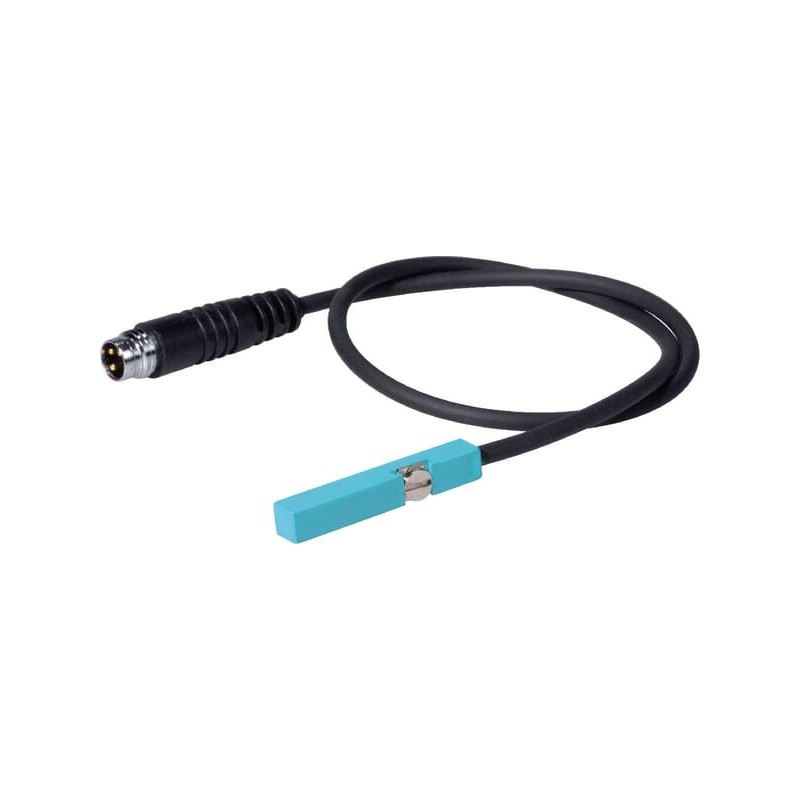

      Reed switch with plug - SENSR8M8
      Reed switch with plug - SENSR8M8
      Reed switch with plug - SENSR8M8

      Reed switch with plug - SENSR8M8

      Review (0)
      zł141.36
      Tax Included
      Return policy:14
      Reed switch with plug - SENSR8M8 - A: 39mm; Additional info: - Cable with M8 plug- Suitable for cylinders DIN ISO 21287, UNITOP, DIN ISO 6432, DIN ISO
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Reed switch with plug - SENSR8M8

      Reference number: SENSR8M8.

      Product parameters:

      • A: 39mm
      • Additional info: - Cable with M8 plug- Suitable for cylinders DIN ISO 21287, UNITOP, DIN ISO 6432, DIN ISO 15552, DIN ISO 15552
      • Cable outer diameter for cable gland: 3.0-3.0
      • Connector diameter: 8
      • Connector length: 35.4
      • Distance bottom to mounting screw: 11
      • For cylinder: DIN ISO 21287, UNITOP, DIN ISO 6432, DIN ISO 15552, DIN ISO 15552
      • Housing material: Plastic, Tworzywo sztuczne
      • Length B: 5mm
      • Length C: 11mm
      • Length D: 3mm
      • Length E: 35.4mm
      • Length F: 8mm
      • Length of sensor: 39
      • Length of the preassembled cable: 0.3
      • Load capacity: max. 2 WW
      • Max. output current: 100
      • Max. switching power: 2
      • Mounting type: T-slot
      • Prąd łączalny: max. 100 mAmA
      • Protection class: IP 67
      • Protection class IP: 67
      • Rated supply voltage at AC 50 Hz: 10-30
      • Rated supply voltage at DC: 10-30
      • Switching function: NO contact
      • Switching voltage: 10 - 30V
      • Type of electric connection: Cable with connector
      • Voltage type: AC | DC
      • Width sensor: 5
      • With LED indication: Yes
      Kramp
      SENSR8M8

      Data sheet

      Additional info
      - Cable with M8 plug- Suitable for cylinders DIN ISO 21287, UNITOP, DIN ISO 6432, DIN ISO 15552, DIN ISO 15552
      Type
      A
      39mm
      Housing material
      Plastic
      Tworzywo sztuczne
      Type of electric connection
      Cable with connector
      Switching function

      NO contact
      Voltage type
      AC | DC
      Connection

      With LED indication
      Yes
      Max. switching power
      2
      Mounting type

      T-slot
      Length F
      8mm
      Protection class
      IP 67
      Rated supply voltage at DC
      10-30
      Length of the preassembled cable
      0.3
      Length of sensor
      39
      Length B
      5mm
      Length C
      11mm
      Length D
      3mm
      Length E
      35.4mm
      Rated supply voltage at AC 50 Hz
      10-30
      Connection length
      35.4
      Max. output current
      100
      Width sensor
      5
      Cable outer diameter for cable gland
      3.0-3.0
      For cylinder
      DIN ISO 21287, UNITOP, DIN ISO 6432, DIN ISO 15552, DIN ISO 15552
      LED
      Measuring method
      Prąd łączalny
      max. 100 mAmA
      Load capacity
      max. 2 WW
      Switching voltage
      10 - 30V
      Protection class IP
      67
      Connector diameter
      8
      Distance bottom to mounting screw
      11
