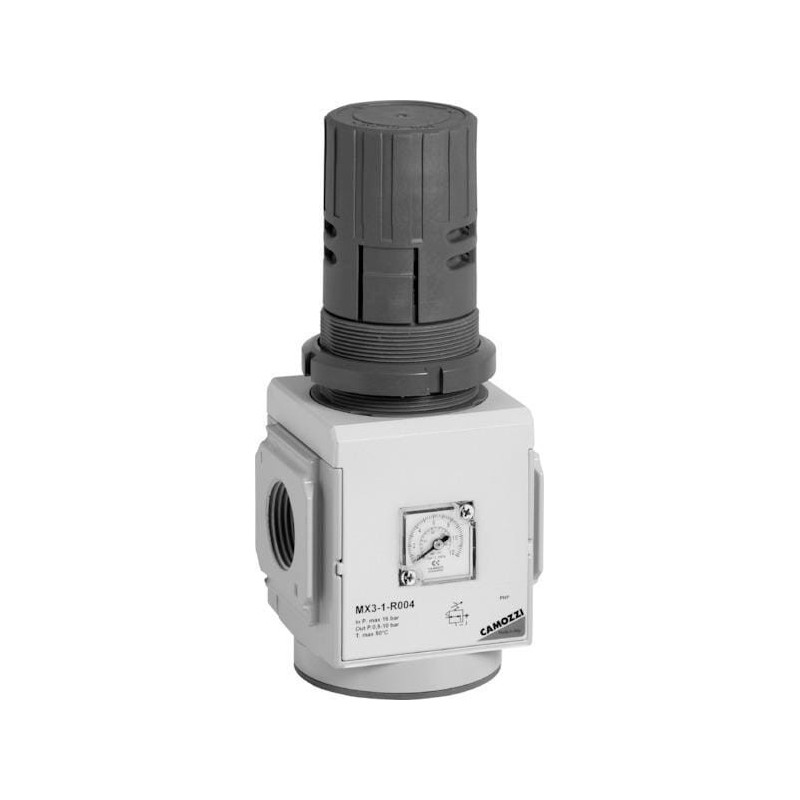

Pressure regulator - MX212R014

Reference number: MX212R014.

Product parameters:

• Adjustable pressure range: 0.5-10
• Body height: 88
• Body length: 70
• Bottom to center connection: 50.5
• Connection: G1/2
• Connection 3, thread length: 13
• Connection no. 2 diameter: 1/2
• Connection thread diameter: 1/2
• Diameter knob: 45
• Diameter locking grooves: 4
• Filter mounting thread pitch: 1.50
• Filtration material: Polyethylene
• Function: nieodpowietrzający
• Knob movement: 5
• m.: 45mm
• Manometru [Tak/Brak]: Yes
• Material: Plastic
• Max working pressure: 16
• Max working temperature: 50
• Min working temperature: -5
• Mounting thread diameter: M47
• Opening pressure: 0.5 ; 10BAR
• Pressuer gauge: Yes
• Size A: G1/2mm
• Size C: 70mm
• Size D: 45mm
• Size E: Ø 4mm
• Size F: M47x1.5mm
• Size G: 70mm
• Size H: 74.5mm
• Size I: 68mm
• Size N: 166mm
• Size P: 78mm
• Size Q: 5mm
• Size R: 88mm
• Size S: 505mm
• Size T: 375mm
• Top to center connection distance: 37.5
• Total height: 166
• Total width: 74.5
• Type: Regulatory ciśnienia
• U: ÷ 13mm
• Weight: 0.6, 0.6kg
