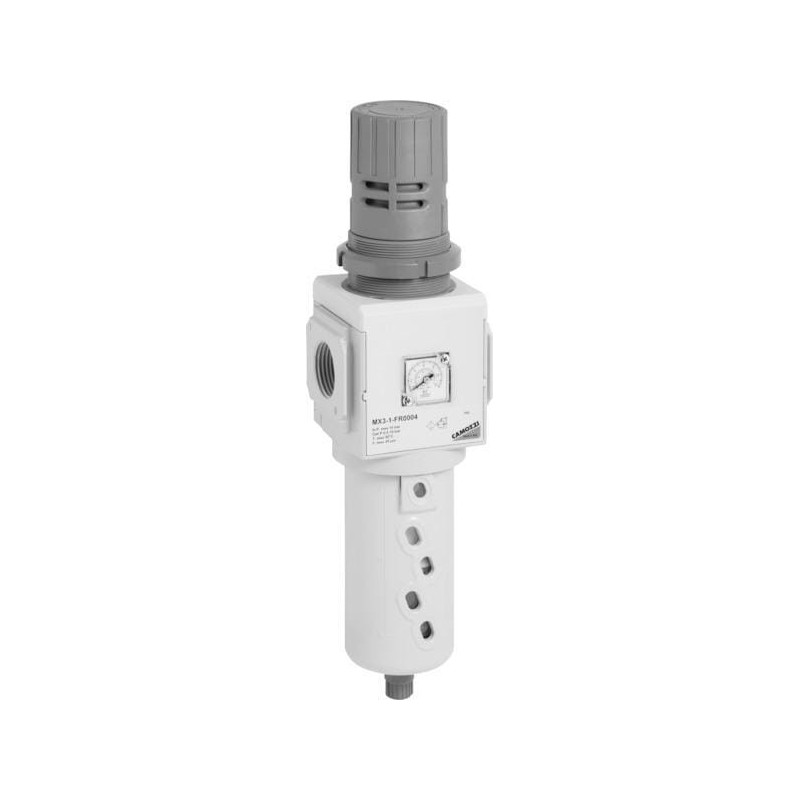

Filter regulator - MX212FR0304

Reference number: MX212FR0304.

Product parameters:

• Adjustable pressure range: 0.5-10
• Body height: 85
• Body length: 70
• Bottom to center connection: 174.5
• Connection: G1/2
• Connection 3, diameter: 1/8
• Connection 3, thread length: 16
• Connection no. 2 diameter: 1/2
• Connection thread diameter: 1/2
• Diameter knob: 45
• Diameter locking grooves: 4.7
• Drain type: Automatic
• Filter finess: 25
• Filter mounting thread pitch: 1.50
• Filtration material: Polyethylene
• Function: samodpowietrzający
• Height base: 127
• Knob movement: 5
• m.: 66mm
• Manometru [Tak/Brak]: Yes
• Material: Plastic
• Max working pressure: 16
• Max working temperature: 50
• Min working temperature: -5
• Mounting thread diameter: M47
• O: 127mm
• Opening pressure: 0.5 ; 10BAR
• Pressuer gauge: Yes
• Reservoir height: 127
• Size A: G1/2mm
• Size C: 70mm
• Size D: 45mm
• Size E: Ø 4.7mm
• Size F: M47x1.5mm
• Size G: 555mm
• Size H: 74.5mm
• Size I: 68mm
• Size L: G1/8mm
• Size N: 290mm
• Size P: 78mm
• Size Q: 5mm
• Size R: 85mm
• Size S: 1745mm
• Size T: 375mm
• Top to center connection distance: 37.5
• Total height: 290
• Total width: 74.5
• Type: Zawory regulacyjne filtra
• Type of drain: spust automatyczny
• U: ÷ 16mm
• Weight: 0.8, 0.8kg
