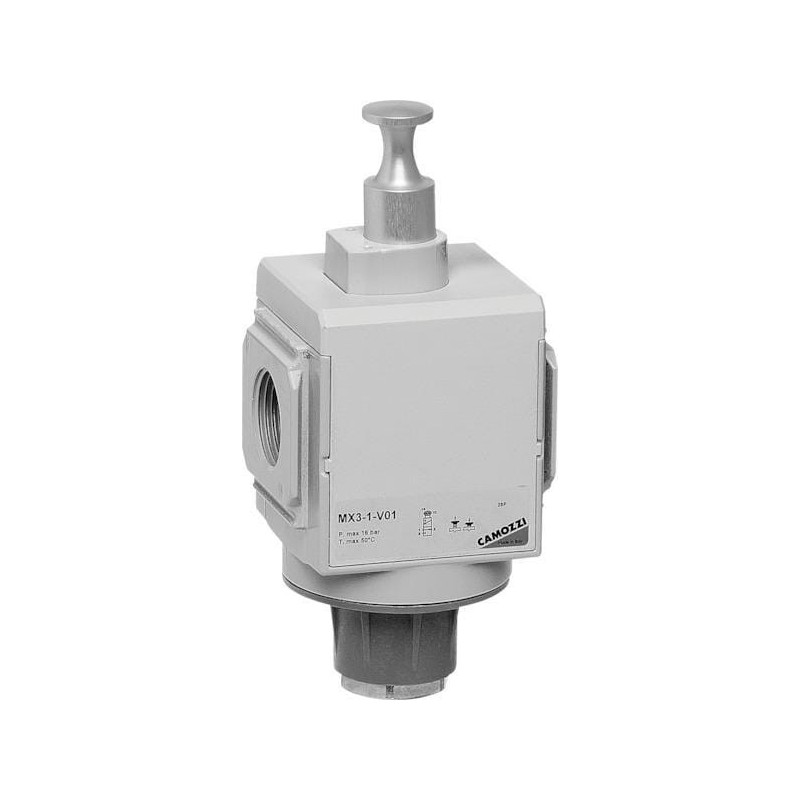

      Isolation valve 3/2 way - MX31V01
      Isolation valve 3/2 way - MX31V01
      Isolation valve 3/2 way - MX31V01
      Isolation valve 3/2 way - MX31V01

      Isolation valve 3/2 way - MX31V01

      Review (0)
      zł558.88
      Tax Included
      Return policy:14
      Isolation valve 3/2 way - MX31V01 - Center bore to top distance: 66.5, 66,5mm; Connection 2, thread diameter: 3/4.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Isolation valve 3/2 way - MX31V01

      Reference number: MX31V01.

      Product parameters:

      • Center bore to top distance: 66.5, 66,5mm
      • Connection 2, thread diameter: 3/4
      • Connection 2, wrench/spanner size: 34.0
      • Connection no 2 wrench size: 34.0mm
      • Connection thread diameter: 1, 1cal
      • Connection thread type: G
      • Function code: 3/2
      • Housing length: 76, 76mm
      • Housing width: 89.5, 89,5mm
      • m.: 14.5, 14.5mm
      • Max working temperature: 60
      • Min working temperature: -5
      • O: 37, 37mm
      • Size F: 23, 23mm
      • Size G: 48, 48mm
      • Size I: 76, 76mm
      • Size L: 8, 8mm
      • Size N: 205.5, 205.5mm
      • Size P: 66.5, 66.5mm
      • Size Q: 40, 40mm
      • Size R: 102, 102mm
      • Size S: 94.5, 94.5mm
      • Size T: 44.5, 44.5mm
      • Spindle material: Aluminium
      • Średnica gwintu przyłącza nr 2: 3/4cal
      • Type: Manual valve, Zawór ręczny
      • Weight: 0.9, 0,9kg
      Camozzi
      MX31V01

      Data sheet

      Weight
      0,9kg
      0.9
      Type
      Manual valve
      Zawór ręczny
      Max working temperature
      60
      Min working temperature
      -5
      Średnica gwintu przyłącza nr 2
      3/4cal
      Connections thread diameter
      1
      1cal
      Housing length
      76
      76mm
      Function code
      3/2
      Connection no 2 wrench size
      34.0mm
      Housing width
      89,5mm
      89.5
      Connection thread type
      G
      Size L
      8
      8mm
      Size S
      94.5
      94.5mm
      Size T
      44.5
      44.5mm
      Center bore to top distance
      66,5mm
      66.5
      Size I
      76
      76mm
      Size G
      48
      48mm
      m.
      14.5
      14.5mm
      O
      37
      37mm
      Size F
      23
      23mm
      Size P
      66.5
      66.5mm
      Size N
      205.5
      205.5mm
      Spindle material
      Aluminium
      Size Q
      40
      40mm
      Size R
      102
      102mm
      Connection 2, thread diameter
      3/4
      Connection 2, wrench/spanner size
      34.0
