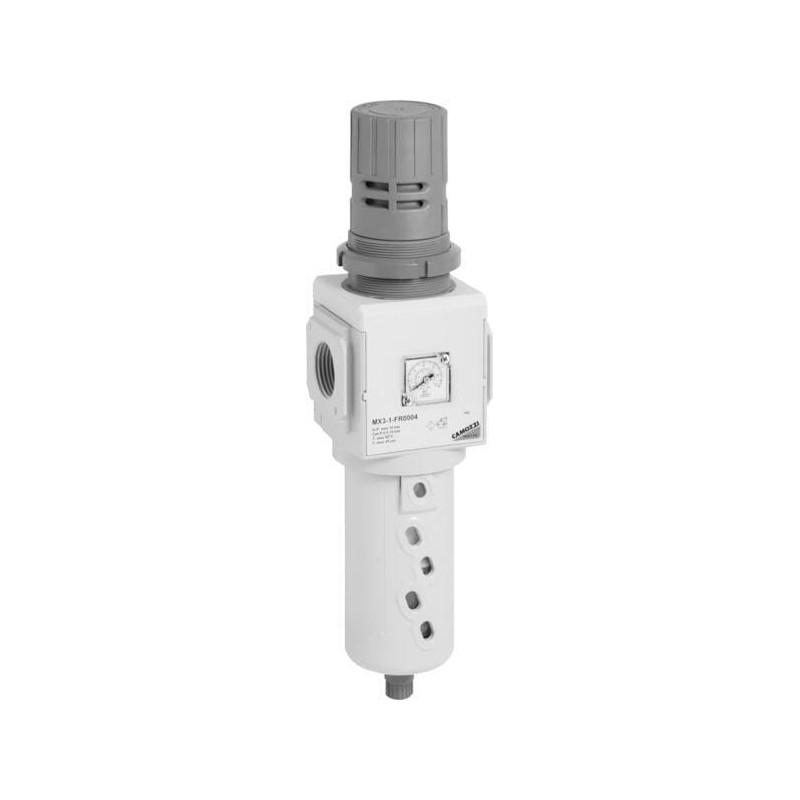

Filter regulator - MX31FR0000

Reference number: MX31FR0000.

Product parameters:

• Adjustable pressure range: 0.5-10
• Body height: 99
• Body length: 89.5
• Bottom to center connection: 196.5
• Connection: Connection 1
• Connection 3, diameter: 1/8
• Connection 3, thread length: 20
• Connection no. 2 diameter: 1
• Connection thread diameter: 1
• Diameter knob: 54
• Diameter locking grooves: 4
• Drain type: Semi-automatic | Manual
• Filter finess: 25
• Filter mounting thread pitch: 1.50
• Filtration material: Polyethylene
• Function: samodpowietrzający
• Height base: 142
• Knob movement: 5
• m.: 75mm
• Manometru [Tak/Brak]: No
• Material: Plastic
• Max working pressure: 16
• Max working temperature: 50
• Min working temperature: -5
• Mounting thread diameter: M57
• O: 142mm
• Opening pressure: 0.5 ; 10BAR
• Pressuer gauge: No
• Reservoir height: 142
• Size A: G1mm
• Size C: 895mm
• Size D: 54mm
• Size E: Ø 4mm
• Size F: M57x1.5mm
• Size G: 615mm
• Size H: 81mm
• Size I: 76mm
• Size L: G1/8mm
• Size N: 345mm
• Size P: 104mm
• Size Q: 5mm
• Size R: 99mm
• Size S: 1965mm
• Size T: 445mm
• Top to center connection distance: 44.5
• Total height: 345
• Total width: 81
• Type: Zawory regulacyjne filtra
• Type of drain: półautomatyczny, uruchamiany ręcznie, spustowy
• U: ÷ 20mm
• Weight: 1.3kg, 1.3
