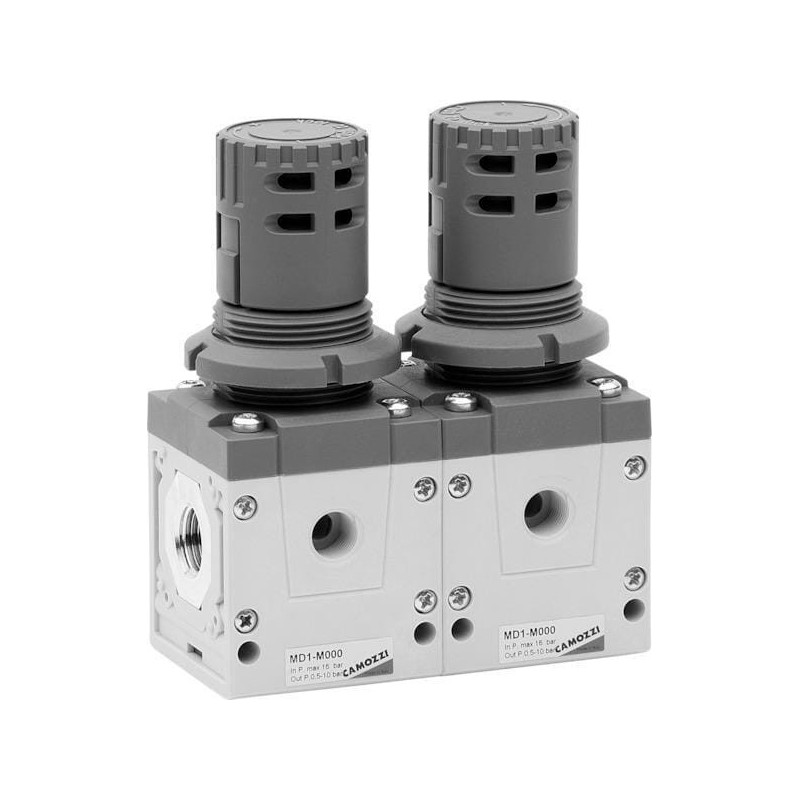

      Manifold pressure regulator - MD1M000
      Manifold pressure regulator - MD1M000
      Manifold pressure regulator - MD1M000

      Manifold pressure regulator - MD1M000

      Review (0)
      zł131.56
      Tax Included
      Return policy:14
      Manifold pressure regulator - MD1M000 - Adjustable pressure range: 0.5-10; Body height: 53.2.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Manifold pressure regulator - MD1M000

      Reference number: MD1M000.

      Product parameters:

      • Adjustable pressure range: 0.5-10
      • Body height: 53.2
      • Body length: 42
      • Bottom to center connection: 27
      • Connection: dB
      • Connection 3, thread length: 11
      • Connection no. 2 diameter: 1/8
      • Connection thread diameter: M4
      • Diameter knob: 28
      • Diameter locking grooves: 3.2
      • Filter mounting thread pitch: 1.50
      • Filtration material: Polyethylene
      • Function: samodpowietrzający
      • Height: 48.8
      • Knob movement: 4
      • m.: 16mm
      • Material: Plastic
      • Max working pressure: 16
      • Max working temperature: 50
      • Min working temperature: -5
      • Mounting thread diameter: M28
      • Opening pressure: 0.5 ; 10BAR
      • Size B: G1/8mm
      • Size C: 42mm
      • Size D: Ø28mm
      • Size E: 42mm
      • Size F: M28X1.5mm
      • Size H: 26.2mm
      • Size I: 43mm
      • Size L: Ø4mm
      • Size N: 102mm
      • Size P: 22.7mm
      • Size Q: 4mm
      • Size R: 53.2mm
      • Size S: 27mm
      • Size T: 34.6mm
      • Size W: 48.8mm
      • Top to center connection distance: 22.7
      • Total height: 102
      • Total width: 43
      • Type: Regulatory ciśnienia kolektora
      • U: ÷ 11mm
      • V: 10.5mm
      • Version: standardowy
      • Weight: 0.2, 0.2kg
      • Z: Ø3.2mm
      Camozzi
      MD1M000

      Data sheet

      Height
      48.8
      Weight
      0.2
      0.2kg
      Total height
      102
      Total width
      43
      Type
      Regulatory ciśnienia kolektora
      Max working pressure
      16
      Max working temperature
      50
      Min working temperature
      -5
      Mounting thread diameter
      M28
      Function
      samodpowietrzający
      Body height
      53.2
      Connection no. 2 diameter
      1/8
      Version
      standardowy
      Connection thread diameter
      M4
      Adjustable pressure range
      0.5-10
      Pipe diameter

      dB
      Connection 3, thread length
      11
      Opening pressure
      0.5 ; 10BAR
      Filtration material
      Polyethylene
      Size E
      42mm
      Size D
      Ø28mm
      Size L
      Ø4mm
      Size B
      G1/8mm
      Size S
      27mm
      Size T
      34.6mm
      Z
      Ø3.2mm
      Size H
      26.2mm
      Size I
      43mm
      m.
      16mm
      Size F
      M28X1.5mm
      Size P
      22.7mm
      U
      ÷ 11mm
      Size C
      42mm
      Size N
      102mm
      Body length
      42
      Top to center connection distance
      22.7
      V
      10.5mm
      Size Q
      4mm
      Size R
      53.2mm
      Size W
      48.8mm
      Diameter knob
      28
      Knob movement
      4
      Diameter locking grooves
      3.2
      Bottom to center connection
      27
      Filter mounting thread pitch
      1.50
      Material

      Plastic
