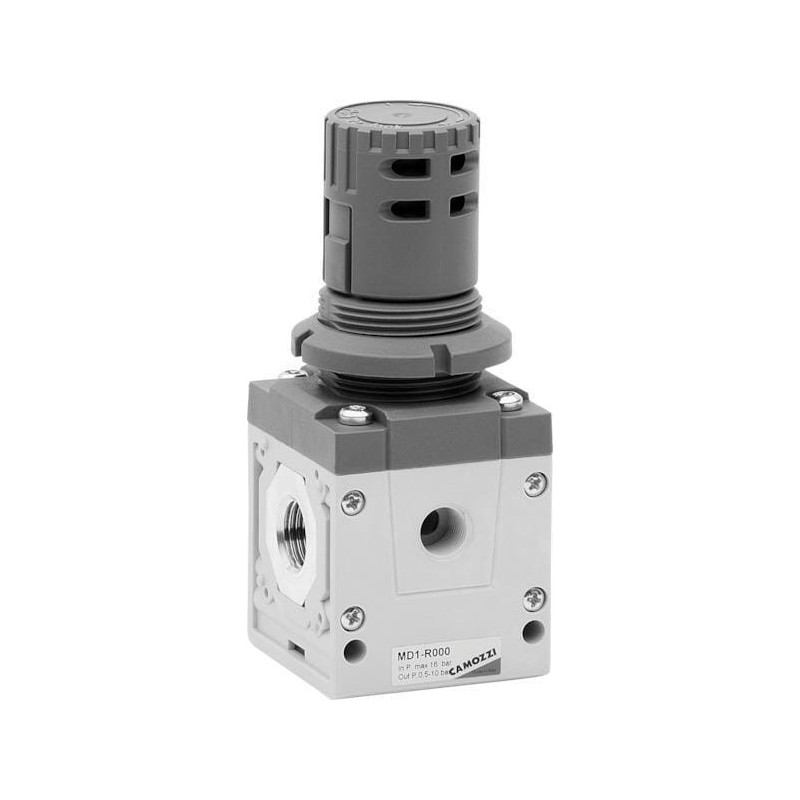

Pressure regulator - MD1R0008

Reference number: MD1R0008.

Product parameters:

• Adjustable pressure range: 0.5-10
• Body height: 53.2
• Body length: 42
• Bottom to center connection: 27
• Connection: dB
• Connection 3, thread length: 11
• Connection no 1 diameter: 8
• Connection no. 2 diameter: 1/8
• Diameter knob: 28
• Diameter locking grooves: 3.2
• Filter mounting thread pitch: 1.50
• Function: samodpowietrzający
• Height: 48.8
• Knob movement: 4
• m.: 16mm
• Material: Plastic
• Max working pressure: 16
• Max working temperature: 50
• Min working temperature: -5
• Mounting thread diameter: M28
• Opening pressure: 0.5 ; 10BAR
• Size A: Ø8mm
• Size B: G1/8mm
• Size C: 62mm
• Size D: Ø28mm
• Size E: 42mm
• Size F: M28X1.5mm
• Size H: 26.2mm
• Size I: 43mm
• Size L: Ø4mm
• Size N: 102mm
• Size P: 22.7mm
• Size Q: 4mm
• Size R: 53.2mm
• Size S: 27mm
• Size T: 34.6mm
• Size W: 48.8mm
• Top to center connection distance: 22.7
• Total height: 102
• Total width: 43
• Type: Regulatory ciśnienia
• U: ÷ 11mm
• V: 10.5mm
• Version: standardowy
• Weight: 0.2, 0.2kg
• Z: Ø3.2mm
