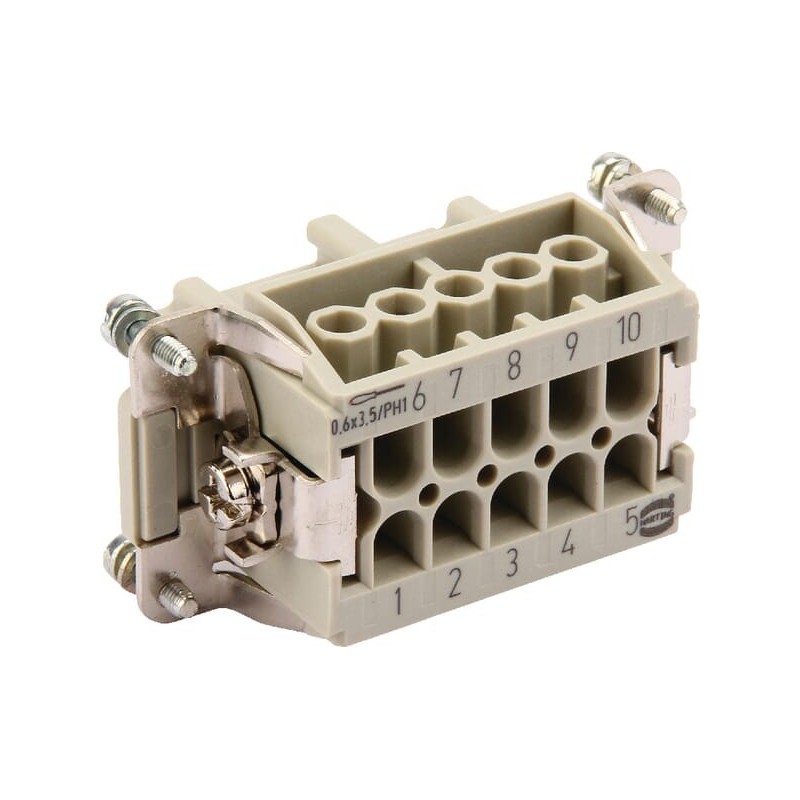

      Socket insert E 10P screw - 09330102701
      Socket insert E 10P screw - 09330102701
      Socket insert E 10P screw - 09330102701
      Socket insert E 10P screw - 09330102701

      Socket insert E 10P screw - 09330102701

      Review (0)
      zł80.46
      Tax Included
      Return policy:14
      Socket insert E 10P screw - 09330102701 - Ambient temperature: -40.0-125.0°C; American wire gauge code: 18-14.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Socket insert E 10P screw - 09330102701

      Reference number: 09330102701.

      Product parameters:

      • Ambient temperature: -40.0-125.0°C
      • American wire gauge code: 18-14
      • Connectable conductor cross section fine-strand with cable end sleeve: 0.750-2.5mm²
      • Connectable conductor cross section fine-strand without cable end sleeve: 0.750-2.5mm²
      • Connectable conductor cross section multi-wired: 0.750-2.5mm²
      • Connectable conductor cross section solid-core: 0.750-2.5mm²
      • Contact insert material: Termoplastyczny
      • Contact type: Gniazdo
      • Inflammability class of insulation material according to with UL94: V0
      • Insert material: Poliwęglan
      • Manufacturer Product ID: 09330102701
      • Material contact body: Inny stop miedziowy
      • Material of contact surface: Silver
      • Min. number of insertion cycles: 500
      • Number of poles: 10
      • Number of power contacts: 10
      • Operation temperature: -40.0-125.0°C
      • Over voltage category: III
      • Pollution degree: 3
      • Protective conductor: Tak
      • Rated current In: 16A
      • Rated surge voltage: 6kV
      • Rated voltage: 500V
      • Series: HAN E
      • Size: cal
      • Średnica styków: 2,5mm
      • Type of electric connection: Połączenie śrubowe
      • Wkład bez styków: Nie
      • Z zabezpieczeniem przewodu: Tak
      Harting
      09330102701

      Data sheet

      Width
      34
      Body size

      cal
      Height
      63.8
      Note
      Depth
      34.6
      Rated voltage
      500
      500V
      Series
      HAN E
      HAN E
      Model
      Type of electric connection
      Połączenie śrubowe
      Screw connection
      Manufacturer Product ID
      09330102701
      Number of poles
      10
      10
      Material contact
      Inny stop miedziowy
      Other copper alloys
      Material of contact surface
      Silver
      Silver
      Rated current In
      16
      16A
      Protective conductor
      Tak
      Yes
      Operation temperature
      -40-125
      -40.0-125.0°C
      Type of switch contact
      Bus
      Gniazdo
      Style
      Pollution degree
      3
      3
      Mounting
      Case type
      Ambient temperature
      -40.0-125.0
      -40.0-125.0°C
      Min. number of insertion cycles
      500
      500
      Connectable conductor cross section multi-wired
      0.75-2.50
      0.750-2.5mm²
      Connectable conductor cross section solid-core
      0.75-2.50
      0.750-2.5mm²
      Over voltage category
      III
      III
      Inflammability class of insulation material according to with UL94
      V0
      V0
      Rated surge voltage
      6
      6kV
      Connectable conductor cross section fine-strand without cable end sleeve
      0.75-2.50
      0.750-2.5mm²
      Connectable conductor cross section fine-strand with cable end sleeve
      0.75-2.50
      0.750-2.5mm²
      Number of power contacts
      10
      10
      Material connector insert
      Poliwęglan
      Polycarbonate
      Material of contact insert
      Termoplastyczny
      Thermoplastic
      Contact insert without contacts
      Nie
      No
      With wire protection
      Tak
      Yes
      Diameter plug-in contact
      2,5mm
      2.5
      American wire gauge size code
      18-14
      18-14
      Material
